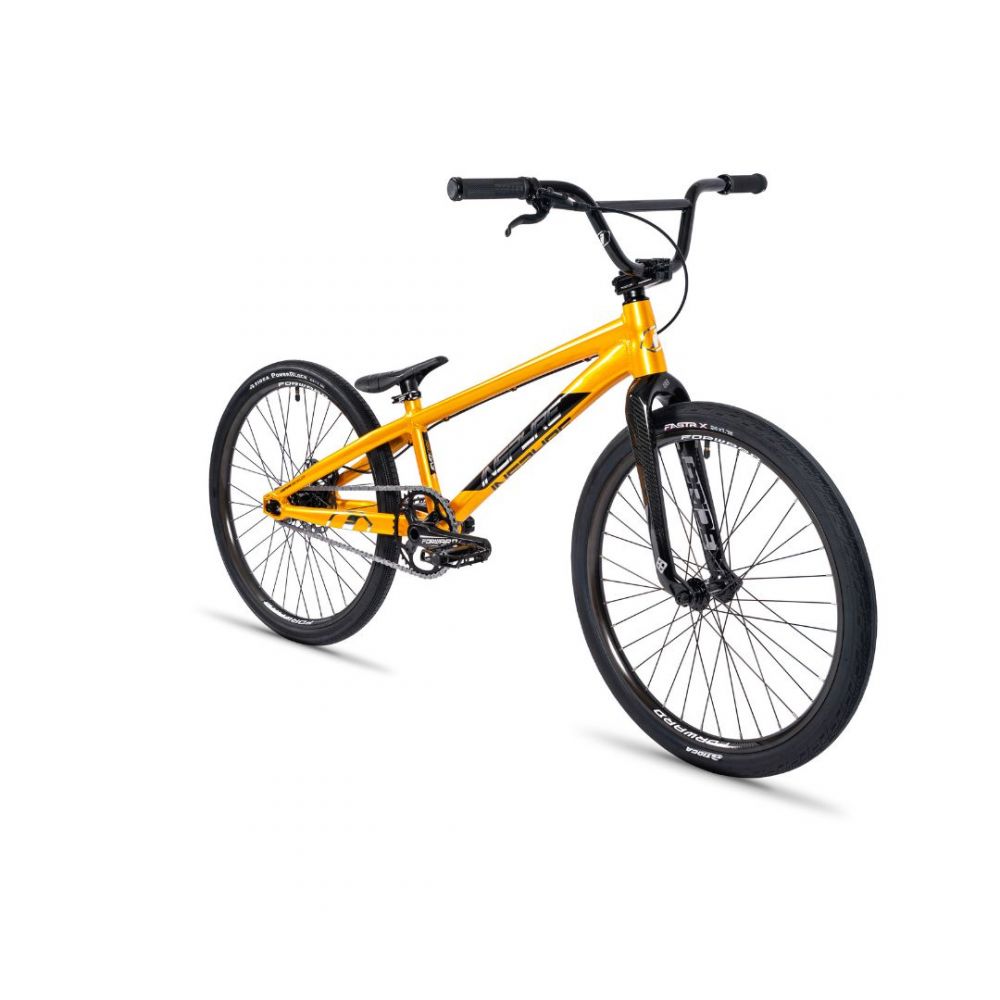

2024 INSPYRE EVO-C DISK COMPLETE BIKE

 The BMX Race Evo-C Disk is the "Race Ready" complete bike from the Inspyre Bicycles lineup with a Pride Racing carbon fork.

The Evo-C complete bike range is available in 7 sizes, from Junior to Cruiser. For each bike size, the components are carefully chosen to best suit the user's morphology and provide maximum support on the track.

The bike is centered around the Inspyre Bicycles® Evo-C Disk frame, which incorporates all the features of a high-end aftermarket frame. The hydroformed tubes made from 6061-T6 aluminum ensure an excellent weight-to-performance ratio. Its geometry allows for stability and responsiveness. The frame includes the Inspyre Bicycles® Swell rear dropout. Besides adding rigidity to the rear of the frame, it integrates the Pride Racing® disc brake dropout, while ensuring perfect chain tension.

The Evo-C Disk is equipped with high-quality aftermarket components.

Delivered with a Pride Racing® carbon fork, the bike gains in performance, rigidity, and responsiveness.

In the Junior & Expert versions, the Evo-C features the Pride Racing® Apex fork. It is designed around a structure combining carbon fiber and aluminum. Its carbon fiber Toray® legs ensure a lively and responsive dynamic. The Apex fork comes with the Stem Lock Pride Racing Apex compression system, ensuring perfect compression and added rigidity.

In the Expert XL to Cruiser versions, the Evo-C comes with a Pride Racing® Slik 3.0 fork. Its Toray® carbon fiber structure offers unparalleled performance.

In the EVO-C range, you'll find the well-known Forward® Joyride aluminum 6061-T6 crankset, as well as the excellent Forward® Joyride V2 hubs with 100% sealed bearings. The rear hub features a 6-pawl system with 150 engagement points, rivaling high-end hubs on the market.

In this 2024 version, the Evo-C features the renowned Tioga tires. A Tioga Fastr X tire at the front and a Tioga Powerblock tire at the rear, creating an ultra-performance combo that provides efficiency and dynamism. The tire width varies depending on the bike size. (Note that the Evo-C Expert XL comes with a 20x1.40" Powerblock tire at the front and rear.)

The Evo-C Disk is a competition-ready bike. Upon reception, out of the box, you only need to assemble the handlebars, insert and secure the front wheel, check the torque of each screw, and inflate the tires. You're then all set to hit the track.

KEY FEATURES:

• INSPYRE BICYCLES® Aluminum 6061-T6 frame
• PRIDE RACING® Slik 3.0 or APEX carbon fork
• SHIMANO® MT401/410 disc brake kit
• TIOGA® FastrX (Rear) / TIOGA® Powerblock (Front) tires
• PRIDE RACING® headset - Integrated (IS)
• Swell rear dropouts with integrated chain tensioners
• 100% sealed bearings
• FORWARD® BSA bottom bracket
• FORWARD® Joyride V2 rear hub - 150 engagement points - 6-pawl system - 100% sealed bearings
• KMC® Z-1 chain

SPECIFICATIONS:

INSPYRE EVO-C DISK JUNIOR - 18.75" TT

FRAME Inspyre Evo-C Disk Junior 18.75’’- Premium Alu 6061-T6 - Hydroformed tubes - Triple butted - Swell forged 3D dropouts
FORK Pride Racing APEX CARBON - Pivot 1-1/8’’ - 10mm
HEADSET Semi Integrated - Sealed bearings - ZS44 | ZS44
HANDLEBAR Inspyre Evo - Aluminium - 22.2mm - 4.25’’ x 22’’ - BS: 7° / US: 2°
GRIPS Forward Lock On 95mm - Kraton
STEM Forward - Top Load - Aluminum 6061-T6 - 40mm
BRAKE LEVER Shimano BL-MT401 - Right lever - Black
BRAKE CALIPER Shimano BR-MT410 - Rear caliper - Post Mount - Resin pads
DISC Forward 140mm disc
BOTTOM BRACKET FORWARD® external BSA - Sealed bearings
CRANKSET Forward Joyride AM 2-piece - 4-bolt (104 BCD) - 150mm
PEDALS Aluminum Mini 9/16
SPROCKET 4-bolt Aluminum 38T
CHAIN KMC® Z-1 - 1/2’’ x 3/32’’
COG 16T - 1/2’’ x 3/32’’ - Chromoly
FRONT RIM Forward Joyride - Aluminum 28H - Double-wall
REAR RIM Forward Joyride - Aluminum 28H - Double-wall
FRONT TIRE Tioga Fastr X - 20x1-3/8’’ - Rigid beads - 60 TPI
REAR TIRE Tioga Powerblock - 20x1-1/8’’ - Rigid beads - 60 TPI
FRONT HUB Forward Joyride - Aluminum 28H - 10mm - 100% Sealed bearings - Female bolts
REAR HUB Forward Joyride Disc - Aluminum Cassette 28H - 10mm - 100% Sealed bearings - 150 engagement points - 6-pawl system - Female bolts
SPOKES Stainless 14G
NIPPLES Brass 14G
SEAT Combo Saddle Nylon Seatpost - Seat: 168x108mm - Seatpost: 162x22.2mm
SEAT CLAMP Forward AM 25.4mm
TENSIONERS Integrated Swell Dropouts
WEIGHT To be confirmed

INSPYRE EVO-C DISK EXPERT - 19.5"TT

FRAME Inspyre Evo-C Disk Expert 19.5’’- Premium Alu 6061-T6 - Hydroformed tubes - Triple butted - Swell forged 3D dropouts
FORK Pride Racing APEX CARBON - Pivot 1-1/8’’ - 10mm
HEADSET Semi Integrated - Sealed bearings - ZS44 | ZS44
HANDLEBAR Inspyre Evo - Aluminium - 22.2mm - 5.5’’ x 26’’ - BS: 7° / US: 2°
GRIPS Forward Lock On 130mm - Kraton
STEM Forward - Top Load - Aluminum 6061-T6 - 40mm
BRAKE LEVER Shimano BL-MT401 - Right lever - Black
BRAKE CALIPER Shimano BR-MT410 - Rear caliper - Post Mount - Resin pads
DISC Forward 140mm disc
BOTTOM BRACKET FORWARD® external BSA - Sealed bearings
CRANKSET Forward Joyride AM 2-piece - 4-bolt (104 BCD) - 160mm
PEDALS Aluminum 9/16
SPROCKET 4-bolt Aluminum 40T
CHAIN KMC® Z-1 - 1/2’’ x 3/32’’
COG 16T - 1/2’’ x 3/32’’ - Chromoly
FRONT RIM Forward Joyride - Aluminum 28H - Double-wall
REAR RIM Forward Joyride - Aluminum 28H - Double-wall
FRONT TIRE Tioga Fastr X - 20x1-3/8’’ - Rigid beads - 60 TPI
REAR TIRE Tioga Powerblock - 20x1-1/8’’ - Rigid beads - 60 TPI
FRONT HUB Forward Joyride - Aluminum 28H - 10mm - 100% Sealed bearings - Female bolts
REAR HUB Forward Joyride Disc - Aluminum Cassette 28H - 10mm - 100% Sealed bearings - 150 engagement points - 6-pawl system - Female bolts
SPOKES Stainless 14G
NIPPLES Brass 14G
SEAT Combo Saddle Nylon Seatpost - Seat: 214x113mm - Seatpost: 162x27.2mm
SEAT CLAMP Forward AM 31.8mm
TENSIONERS Integrated Swell Dropouts
WEIGHT To be confirmed

INSPYRE EVO-C DISK EXPERT XL - 20"TT

FRAME Inspyre Evo-C Disk Expert XL - 20’’- Premium Alu 6061-T6 - Hydroformed tubes - Triple butted - Swell forged 3D dropouts
FORK Pride Racing Slik 3.0 - Torayca T700 carbon - Tapered 1-1/8’’ / 1.5’’ pivot - Aluminum Crown Race - 10mm - 3K Gloss
HEADSET Pride Racing - Tapered Integrated - Sealed bearings - IS42 | IS52
HANDLEBAR Inspyre Evo - 100% Crmo - 22.2mm - 6’.5’ x 26’’ - BS: 7° / US: 2°
GRIPS Forward Lock On 130mm - Kraton
STEM Forward - Top Load - Aluminum 6061-T6 - 50mm
BRAKE LEVER Shimano BL-MT401 - Right lever - Black
BRAKE CALIPER Shimano BR-MT410 - Rear caliper - Post Mount - Resin pads
DISC Forward 140mm disc
BOTTOM BRACKET FORWARD® external BSA - Sealed bearings
CRANKSET Forward Joyride AM 2-piece - 4-bolt (104 BCD) - 170mm
PEDALS Aluminum 9/16
SPROCKET 4-bolt Aluminum 41T
CHAIN KMC® Z-1 - 1/2’’ x 3/32’’
COG 16T - 1/2’’ x 3/32’’ - Chromoly
FRONT RIM Forward Joyride - Aluminum 36H - Double-wall
REAR RIM Forward Joyride - Aluminum 36H - Double-wall
FRONT TIRE Tioga Powerblock - 20x1.40’’ - Rigid beads - 60 TPI
REAR TIRE Tioga Powerblock - 20x1.40’’ - Rigid beads - 60 TPI
FRONT HUB Forward Joyride - Aluminum 36H - 10mm - 100% Sealed bearings - Female bolts
REAR HUB Forward Joyride Disc - Aluminum Cassette 36H - 10mm - 100% Sealed bearings - 150 engagement points - 6-pawl system - Female bolts
SPOKES Stainless 14G
NIPPLES Brass 14G
SEAT Combo Saddle Nylon Seatpost - Seat: 214x113mm - Seatpost: 162x27.2mm
SEAT CLAMP Forward AM 31.8mm
TENSIONERS Integrated Swell Dropouts
WEIGHT To be confirmed

 INSPYRE EVO-C DISK PRO - 20.5"TT

CRANKSET Forward Joyride AM 2-piece - 4-bolt (104 BCD) - 175mm
PEDALS Aluminum 9/16
SPROCKET 4-bolt Aluminum 42T
CHAIN KMC® Z-1 - 1/2’’ x 3/32’’
COG 16T - 1/2’’ x 3/32’’ - Chromoly
FRONT RIM Forward Joyride - Aluminum 36H - Double-wall
REAR RIM Forward Joyride - Aluminum 36H - Double-wall
FRONT TIRE Tioga Fastr X - 20x1.75’’ - Rigid beads - 60 TPI
REAR TIRE Tioga Powerblock - 20x1.60’’ - Rigid beads - 60 TPI
FRONT HUB Forward Joyride - Aluminum 36H - 10mm - 100% Sealed bearings - Female bolts
REAR HUB Forward Joyride Disc - Aluminum Cassette 36H - 10mm - 100% Sealed bearings - 150 engagement points - 6-pawl system - Female bolts
SPOKES Stainless 14G
NIPPLES Brass 14G
SEAT Combo Saddle Nylon Seatpost - Seat 214x113mm - Seatpost 162x27.2mm
SEAT CLAMP Forward AM 31.8mm
TENSIONERS Integrated Swell Dropouts
WEIGHT To be confirmed

 INSPYRE EVO-C DISK PRO XL - 21.25"TT

FRAME Inspyre Evo-C Disk Pro XL - 21.25’’- Premium Alu 6061-T6 - Hydroformed tubes - Triple butted - Swell forged 3D dropouts
FORK Pride Racing Slik 3.0 - Torayca T700 carbon - Tapered 1-1/8’’ / 1.5’’ pivot - Aluminum Crown Race - 10mm - 3K Gloss
HEADSET Pride Racing - Tapered Integrated - Sealed bearings - IS42 | IS52
HANDLEBAR Inspyre Evo - 100% Crmo - 22.2mm - 8’’ x 28.5’’ - BS: 7° / US: 1.5°
GRIPS Forward Lock On 130mm - Kraton
STEM Forward - Top Load - Aluminum 6061-T6 - 50mm
BRAKE LEVER Shimano BL-MT401 - Right lever - Black
BRAKE CALIPER Shimano BR-MT410 - Rear caliper - Post Mount - Resin pads
DISC Forward 140mm disc
BOTTOM BRACKET FORWARD® external BSA - Sealed bearings
CRANKSET Forward Joyride AM 2-piece - 4-bolt (104 BCD) - 175mm
PEDALS Aluminum 9/16
SPROCKET 4-bolt Aluminum 43T
CHAIN KMC® Z-1 - 1/2’’ x 3/32’’
COG 16T - 1/2’’ x 3/32’’ - Chromoly
FRONT RIM Forward Joyride - Aluminum 36H - Double-wall
REAR RIM Forward Joyride - Aluminum 36H - Double-wall
FRONT TIRE Tioga Fastr X - 20x1.75’’ - Rigid beads - 60 TPI
REAR TIRE Tioga Powerblock - 20x1.75’’ - Rigid beads - 60 TPI
FRONT HUB Forward Joyride - Aluminum 36H - 10mm - 100% Sealed bearings - Female bolts
REAR HUB Forward Joyride Disc - Aluminum Cassette 36H - 10mm - 100% Sealed bearings - 150 engagement points - 6-pawl system - Female bolts
SPOKES Stainless 14G
NIPPLES Brass 14G
SEAT Combo Saddle Nylon Seatpost - Seat: 214x113mm - Seatpost: 162x27.2mm
SEAT CLAMP Forward AM 31.8mm
TENSIONERS Integrated Swell Dropouts
WEIGHT To be confirmed

 INSPYRE EVO-C DISK PRO XXL - 21.85"TT

FRAME Inspyre Evo-C Disk Pro XXL - 21.85’’- Premium Alu 6061-T6 - Hydroformed tubes - Triple butted - Swell forged 3D dropouts
FORK Pride Racing Slik 3.0 - Torayca T700 carbon - Tapered 1-1/8’’ / 1.5’’ pivot - Aluminum Crown Race - 10mm - 3K Gloss
HEADSET Pride Racing - Tapered Integrated - Sealed bearings - IS42 | IS52
HANDLEBAR Inspyre Evo - 100% Crmo - 22.2mm - 8’’ x 28.5’’ - BS: 7° / US:> 1.5°
GRIPS Forward Lock On 130mm - Kraton
STEM Forward - Top Load - Aluminum 6061-T6 - 50mm
BRAKE LEVER Shimano BL-MT401 - Right lever - Black
BRAKE CALIPER Shimano BR-MT410 - Rear caliper - Post Mount - Resin pads
DISC Forward 140mm disc
BOTTOM BRACKET FORWARD® external BSA - Sealed bearings
CRANKSET Forward Joyride AM 2-piece - 4-bolt (104 BCD) - 180mm
PEDALS Aluminum 9/16
SPROCKET 4-bolt Aluminum 44T
CHAIN KMC® Z-1 - 1/2’’ x 3/32’’
COG 16T - 1/2’’ x 3/32’’ - Chromoly
FRONT RIM Forward Joyride - Aluminum 36H - Double-wall
REAR RIM Forward Joyride - Aluminum 36H - Double-wall
FRONT TIRE Tioga Fastr X - 20x1.75’’ - Rigid beads - 60 TPI
REAR TIRE Tioga Powerblock - 20x1.75’’ - Rigid beads - 60 TPI
FRONT HUB Forward Joyride - Aluminum 36H - 10mm - 100% Sealed bearings - Female bolts
REAR HUB Forward Joyride Disc - Aluminum Cassette 36H - 10mm - 100% Sealed bearings - 150 engagement points - 6-pawl system - Female bolts
SPOKES Stainless 14G
NIPPLES Brass 14G
SEAT Combo Saddle Nylon Seatpost - Seat: 214x113mm - Seatpost: 162x27.2mm
SEAT CLAMP Forward AM 31.8mm
TENSIONERS Integrated Swell Dropouts
WEIGHT To be confirmed

 INSPYRE EVO-C DISK CRUISER - 21.85"TT

FRAME Inspyre Evo-C Disk Pro XXL - 21.85’’- Premium Alu 6061-T6 - Hydroformed tubes - Triple butted - Swell forged 3D dropouts
FORK Pride Racing Slik 3.0 - Torayca T700 carbon - Tapered 1-1/8’’ / 1.5’’ pivot - Aluminum Crown Race - 10mm - 3K Gloss
HEADSET Pride Racing - Tapered Integrated - Sealed bearings - IS42 | IS52
HANDLEBAR Inspyre Evo - 100% Crmo - 22.2mm - 5’’ x 27.5’’ - BS: 7° / US: 1.5°
GRIPS Forward Lock On 130mm - Kraton
STEM Forward - Top Load - Aluminum 6061-T6 - 50mm
BRAKE LEVER Shimano BL-MT401 - Right lever - Black
BRAKE CALIPER Shimano BR-MT410 - Rear caliper - Post Mount - Resin pads
DISC Forward 140mm disc
BOTTOM BRACKET FORWARD® external BSA - Sealed bearings
CRANKSET Forward Joyride AM 2-piece - 4-bolt (104 BCD) - 175mm
PEDALS Aluminum 9/16
SPROCKET 4-bolt Aluminum 41T
CHAIN KMC® Z-1 - 1/2’’ x 3/32’’
COG 18T - 1/2’’ x 3/32’’ - Chromoly
FRONT RIM Forward Joyride - Aluminum 36H - Double-wall
REAR RIM Forward Joyride - Aluminum 36H - Double-wall
FRONT TIRE Tioga Fastr X - 24x1.75’’ - Rigid beads - 60 TPI
REAR TIRE Tioga Powerblock - 24x1.60’’ - Rigid beads - 60 TPI
FRONT HUB Forward Joyride - Aluminum 36H - 10mm - 100% Sealed bearings - Female bolts
REAR HUB Forward Joyride Disc - Aluminum Cassette 36H - 10mm - 100% Sealed bearings - 150 engagement points - 6-pawl system - Female bolts
SPOKES Stainless 14G
NIPPLES Brass 14G
SEAT Combo Saddle Nylon Seatpost - Seat: 214x113mm - Seatpost: 162x27.2mm
SEAT CLAMP Forward AM 31.8mm
TENSIONERS Integrated Swell Dropouts
WEIGHT To be confirmed
