INSPYRE Neo Complete Bike NEW 2025

BMX INSPYRE NEO 2025

The NEO is the bike designed for new BMX Race riders. It has all the essential features to help you get started and progress in the sport. This is the ideal bike for mastering your first starts, jumps, and races with full confidence.

The Neo features an aluminum frame. Reactive Geometry technology provides a dynamic and responsive bike that helps you improve at your own pace. The result is a bike that is super easy to handle and fun to ride.

This year, the Neo range introduces a new size, the Pro XL. There is also the addition of 18" wheels for the Micro size, the perfect combo for the youngest riders. The Expert XL has been updated with 20x1-3/8" wheels. The Neo is developed around 8 different geometries, so you’ll easily find the size that matches your body type. Components are adapted based on the bike size, with the drivetrain and cockpit sizing adjusted to match each rider’s build, ensuring an optimal riding position and feel. For smaller sizes, the bike includes a brake lever designed for small hands, ensuring maximum safety.

FEATURES

• 6061-T6 Aluminum frame
• Integrated headset
• 3-piece aluminum crankset (square taper axle)
• Optimized gear ratios
• Double-wall rims
• Flip/flop rear hub
• Chain tensioners

MICRO
FRAME    Inspyre Neo Micro - 15.75’’ Alloy 6061-T6 - Forged dropouts
FORK    Inspyre Neo - 18" Chromoly - 1'' Steerer Tube - Tapered Legs
HEADSET    Integrated Sealed Bearings - IS42 | IS42
BAR    Inspyre Neo - Hi Ten 2’’ x 20’’ - BS : 10° / US : 2°
GRIPS    Inspyre 100mm Krayton
STEM    Inspyre Neo - Top Load - Aluminium Cold Forged - 40mm
BOTTOM BRACKET    Square Taper BB 113.5mm - Sealed Bearings
SPROCKET    Aluminium 5 bolts 36T - 110mm
CRANKSET    3 pcs alloy arm - 5 bolts - 127mm
PEDALS    Mini PC 9/16
FREEWHEEL    16T CP - 1/2’’ x 3/32’’
CHAIN    KMC Z-6 - 1/2’’ x 3/32’’
FRONT HUB    Aluminium Hub 28H - 10mm - Ball bearings
REAR HUB    Aluminium Hub 28H - 10mm - Ball bearings - Flip/Flop
SPOKES    Stainless 14G
NIPPLES    Brass 14G
FRONT RIM    Inspyre - Aluminium 28H - Double walls
REAR RIM    Inspyre - Aluminium 28H - Double walls with CNC Sidewall
FRONT TIRE    Vee Tire Speedster 18" x 1"
REAR TIRE    Vee Tire Speedster 18" x 1"
BRAKE LEVER    Forward Mini OEM
BRAKE CALIPER    Tektro RX1
SEAT COMBO    PC Combo 22.2mm
SEAT CLAMP    Alloy 25.4mm
CHAIN TENSIONERS    Alloy chain tensioners - 2 holes - 10mm
RIDER HEIGHT    1m00 - 1m15
WEIGHT    TBC

MINI
FRAME    Inspyre Neo Mini - 17.25’’ Alloy 6061-T6 - Forged dropouts
FORK    Inspyre Neo - Chromoly - 1'' Steerer Tube - Tapered Legs
HEADSET    Integrated Sealed Bearings - IS42 | IS42
BAR    Inspyre NEO – Hi Ten 2.25’’x 23’’- Backsweep : 9° – Upsweep : 2°
GRIPS    Inspyre 100mm Krayton
STEM    Inspyre Neo - Top Load - Aluminium Cold Forged - 40mm
BOTTOM BRACKET    Square Taper BB 113.5mm - Sealed Bearings
SPROCKET    Aluminium 5 bolts 36T - 110mm
CRANKSET    3 pcs alloy arm - 5 bolts - 140mm
PEDALS    Mini PC 9/16
FREEWHEEL    CP 16T - 1/2’’ x 3/32’’
CHAIN    KMC® Z-6 - 1/2’’ x 3/32’’
FRONT HUB    Aluminium Hub 28H - 10mm - Ball bearings
REAR HUB    Aluminium Hub 28H - 10mm - Ball bearings - Flip/Flop
SPOKES    Stainless 14G
NIPPLES    Laiton 14g
FRONT RIM    Inspyre - Aluminium 28H - Double walls
REAR RIM    Inspyre - Aluminium 28H - Double walls with CNC Sidewall
FRONT TIRE    Vee Tire Speedster 20" x 1-1/8"
REAR TIRE    Vee Tire Speedster 20" x 1-1/8"
BRAKE LEVER    Forward Mini OEM
BRAKE CALIPER    Tektro® RX1
SEAT COMBO    PC Combo 22.2mm
SEAT CLAMP    Alloy 25.4mm
CHAIN TENSIONERS    Alloy chain tensioners - 2 holes - 10mm
RIDER HEIGHT    1m15 - 1m35
WEIGHT    7.80 kgs without pedals

JUNIOR
FRAME    Inspyre Neo Junior - 18.75" Alloy 6061-T6 - Forged dropouts
FORK    Inspyre Neo - Chromoly - 1'' Steerer Tube - Tapered Legs
HEADSET    Integrated Sealed Bearings - IS42 | IS42
BAR    Inspyre Neo - Hi Ten 4.25’’x 24,5’’- BS: 9° – US: 2°
GRIPS    Inspyre 100mm Krayton
STEM    Inspyre Neo - Top Load - Aluminium Cold Forged - 40mm
BOTTOM BRACKET    Square Taper BB 113.5mm - Sealed Bearings
SPROCKET    Aluminium 5 bolts 38T - 110mm
CRANKSET    3 pcs alloy arm - 5 bolts - 150mm
PEDALS    VP Mini PC 9/16
FREEWHEEL    16T CP - 1/2" x 3/32"
CHAIN    KMC® Z-6 - 1/2’’ x 3/32’’
FRONT HUB    Aluminium Hub 28H - 10mm - Ball bearings
REAR HUB    Aluminium Hub 28H - 10mm - Ball bearings - Flip/Flop
SPOKES    Stainless 14G
NIPPLES    Laiton 14G
FRONT RIM    Inspyre - Aluminium 28H - Double walls
REAR RIM    Inspyre - Aluminium 28H - Double walls with CNC Sidewall
FRONT TIRE    Vee Tire Speedster 20" x 1-3/8"
REAR TIRE    Vee Tire Speedster 20" x 1-1/8"
BRAKE LEVER    Forward Pro Lever Aluminium
BRAKE CALIPER    Tektro RX1
SEAT COMBO    PC Combo 22.2mm
SEAT CLAMP    Alloy 25.4mm
CHAIN TENSIONERS    Alloy chain tensioners - 2 holes - 10mm
RIDER HEIGHT    1m35 - 1m45
WEIGHT    7,95kg without pedals

EXPERT
FRAME    Inspyre Neo Expert - 19.5’’ Alloy 6061-T6 - Forged dropouts
FORK    Inspyre Neo - Chromoly - 1-1/8'' Steerer Tube - Tapered Legs
HEADSET    Integrated Sealed Bearings - IS42 | IS42
BAR    Inspyre Neo - Hi Ten 5.5’’ x 26’’ - BS : 9° / US : 2°
GRIPS    Inspyre 100mm Krayton
STEM    Inspyre Neo - Top Load - Aluminium Cold Forged - 40mm
BOTTOM BRACKET    Square Taper BB 113.5mm - Sealed Bearings
SPROCKET    Aluminium 5 bolts 40T - 110mm
CRANKSET    3 pcs alloy arm - 5 bolts - 160mm
PEDALS    VP PC 9/16
FREEWHEEL    CP 16T - 1/2’’ x 3/32’’
CHAIN    KMC® Z-6 - 1/2’’ x 3/32’’
FRONT HUB    Aluminium Hub 28H - 10mm - Ball bearings
REAR HUB    Aluminium Hub 28H - 10mm - Ball bearings - Flip/Flop
SPOKES    Stainless 14G
NIPPLES    Laiton 14G
FRONT RIM    Inspyre - Aluminium 28H - Double walls
REAR RIM    Inspyre - Aluminium 28H - Double walls with CNC Sidewall
FRONT TIRE    Vee Tire Speedster 20"x1-3/8"
REAR TIRE    Vee Tire Speedster 20"x1-3/8"
BRAKE LEVER    Pro Lever Aluminium
BRAKE CALIPER    Tektro RX1
SEAT COMBO    PC Combo 27.2mm
SEAT CLAMP    Alloy 31.8mm
CHAIN TENSIONERS    Alloy chain tensioners - 2 holes - 10mm
RIDER HEIGHT    1m40 - 1m55
WEIGHT    8.2kg without pedals

EXPERT XL
FRAME    Inspyre Neo Expert XL - 20’’ Alloy 6061-T6 - Forged dropouts
FORK    Inspyre Neo - Chromoly - 1-1/8'' Steerer Tube - Tapered Legs
HEADSET    Integrated Sealed Bearings - IS42 | IS42
BAR    Inspyre Neo - Hi Ten 6.5’’ x 26’’ - BS : 9° / US : 2°
GRIPS    Inspyre 130mm Krayton
STEM    Inspyre Neo - Top Load - Aluminium Cold Forged - 50mm
BOTTOM BRACKET    Square Taper BB 113.5mm - Sealed Bearings
SPROCKET    Aluminium 4 bolts 41T - 104mm
CRANKSET    3 pcs alloy arm - 4 bolts - 165mm
PEDALS    VP PC 9/16
FREEWHEEL    16T CP - 1/2’’ x 3/32’’
CHAIN    KMC® Z-6 - 1/2’’ x 3/32’’
FRONT HUB    Aluminium Hub 28H - 10mm - Ball bearings
REAR HUB    Aluminium Hub 28H - 10mm - Ball bearings - Flip/Flop
SPOKES    Stainless 14G
NIPPLES    Laiton 14G
FRONT RIM    Inspyre - Aluminium 28H - Double walls
REAR RIM    Inspyre - Aluminium 28H - Double walls with CNC Sidewall
FRONT TIRE    Vee Tire Speedster 20" x 1-3/8"
REAR TIRE    Vee Tire Speedster 20" x 1-3/8"
BRAKE LEVER    Pro Lever Aluminium
BRAKE CALIPER    Tektro BX310
SEAT COMBO    PC Combo 27,2mm
SEAT CLAMP    Alloy 31.8mm
CHAIN TENSIONERS    Alloy chain tensioners - 2 holes - 10mm
RIDER HEIGHT    1m50 - 1m65
WEIGHT    9.10kg without pedals

PRO
FRAME    Inspyre Neo Pro - 20.5’’ Alloy 6061-T6 - Forged dropouts
FORK    Inspyre Neo - Chromoly - 1-1/8'' Steerer Tube - Tapered Legs
HEADSET    Integrated Sealed Bearings - IS42 | IS42
BAR    Inspyre Neo - Hi Ten 7.5’’ x 26.8’’ - BS: 9° / US: 2°
GRIPS    Inspyre 130mm Krayton
STEM    Inspyre Neo - Top Load - Aluminium Cold Forged - 50mm
BOTTOM BRACKET    Square Taper BB 113.5mm - Sealed Bearings
SPROCKET    Aluminium 4 bolts 42T - 104mm
CRANKSET    3 pcs alloy arm - 4 bolts - 175mm
PEDALS    VP CP 9/16
FREEWHEEL    CP 16T - 1/2’’ x 3/32’
CHAIN    KMC® Z-6 - 1/2’’ x 3/32’’
FRONT HUB    Aluminium Hub 36H - 10mm - Ball bearings
REAR HUB    Aluminium Hub 36H - 10mm - Ball bearings - Flip/Flop
SPOKES    Stainless 14G
NIPPLES    Laiton 14G
FRONT RIM    Inspyre - Aluminium 36H - Double walls
REAR RIM    Inspyre - Aluminium 36H - Double walls with CNC Sidewall
FRONT TIRE    Vee Tire Speedster 20"x1.75"
REAR TIRE    Vee Tire Speedster 20"x1.75"
BRAKE LEVER    Pro Lever Aluminium
BRAKE CALIPER    Tektro BX310AL
SEAT COMBO    PC Combo 27.2mm
SEAT CLAMP    Alloy 31.8mm
CHAIN TENSIONERS    Alloy chain tensioners - 2 holes - 10mm
RIDER HEIGHT    1m55 - 1m70
WEIGHT    9.3kg without pedals

PRO XL
FRAME    Inspyre Neo Pro XL - 21.25" Alloy 6061-T6 - Forged dropouts
FORK    Inspyre Neo - Chromoly - 1-1/8'' Steerer Tube - Tapered Legs
HEADSET    Integrated Sealed Bearings - IS42 | IS42
BAR    Inspyre Neo - Hi Ten 8’’ x 27’’ - BS: 9° / US: 2°
GRIPS    Inspyre 130mm Krayton
STEM    Inspyre Neo - Top Load - Aluminium Cold Forged - 50mm
BOTTOM BRACKET    Square Taper BB 113.5mm - Sealed Bearings
SPROCKET    Aluminium 4 bolts 42T - 104mm
CRANKSET    3 pcs alloy arm - 4 bolts - 175mm
PEDALS    VP CP 9/16
FREEWHEEL    CP 16T - 1/2’’ x 3/32’’
CHAIN    KMC® Z-6 - 1/2’’ x 3/32’’
FRONT HUB    Aluminium Hub 36H - 10mm - Ball bearings
REAR HUB    Aluminium Hub 36H - 10mm - Ball bearings - Flip/Flop
SPOKES    Stainless 14G
NIPPLES    Laiton 14G
FRONT RIM    Inspyre - Aluminium 36H - Double walls
REAR RIM    Inspyre - Aluminium 36H - Double walls with CNC Sidewall
FRONT TIRE    Vee Tire Speedster 20"x1.75"
REAR TIRE    Vee Tire Speedster 20"x1.75"
BRAKE LEVER    Pro Lever Aluminium
BRAKE CALIPER    Tektro BX310AL
SEAT COMBO    PC Combo 27.2mm
SEAT CLAMP    Alloy 31.8mm
CHAIN TENSIONERS    Alloy chain tensioners - 2 holes - 10mm
RIDER HEIGHT    1m55 - 1m70
WEIGHT    TBC

CRUISER
FRAME    Inspyre Neo Cruiser - 21.75’’ Alloy 6061-T6 - Forged dropouts
FORK    Inspyre Neo - Chromoly - 1-1/8'' Steerer Tube - Tapered Legs
HEADSET    Integrated Sealed Bearings - IS42 | IS42
BAR    Inspyre Neo - Hi Ten - 5.5’’ x 27.5’’ - BS: 7° / US: 2°
GRIPS    Inspyre 130mm Krayton
STEM    Inspyre Neo - Top Load - Aluminium Cold Forged - 50mm
BOTTOM BRACKET    Square Taper BB 113.5mm - Sealed Bearings
SPROCKET    Aluminium 4 bolts 41T - 104mm
CRANKSET    3 pcs alloy arm - 4 bolts - 175mm
PEDALS    VP PC 9/16
FREEWHEEL    CP 18T - 1/2’’ x 3/32’’
CHAIN    KMC® Z-1 - 1/2’’ x 3/32’’
FRONT HUB    Aluminium Hub 36H - 10mm - Ball bearings
REAR HUB    Aluminium Hub 36H - 10mm - Ball bearings - Flip/Flop
SPOKES    Stainless 14G
NIPPLES    Brass 14G
FRONT RIM    Inspyre - Aluminium 36H - Double walls
REAR RIM    Inspyre - Aluminium 36H - Double walls with CNC Sidewall
FRONT TIRE    Vee Tire Speedster 24" x 1.75"
REAR TIRE    Vee Tire Speedster 24" x 1.75"
BRAKE LEVER    Pro Lever Aluminium
BRAKE CALIPER    Tektro BX310AL
SEAT COMBO    PC Combo 27.2mm
SEAT CLAMP    Alloy 31.8mm
CHAIN TENSIONERS    Alloy chain tensioners - 2 holes - 10mm
RIDER HEIGHT    1m70 - 1m95
WEIGHT    10,60kgs without pedals

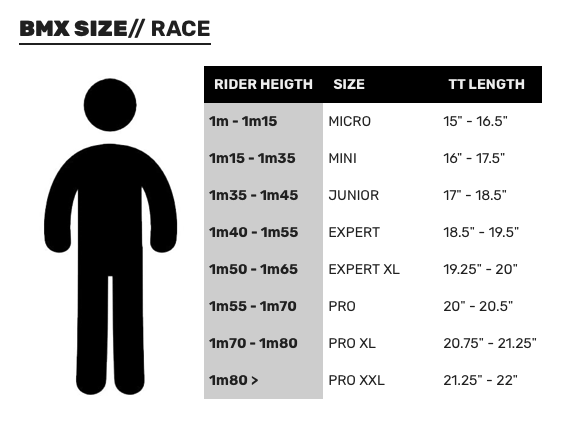

BMX SIZE// RACE

RIDER HEIGTH    SIZE    TT LENGTH
1m - 1m15    MICRO    15" - 16.5"
1m15 - 1m35    MINI    16" - 17.5"
1m35 - 1m45    JUNIOR    17" - 18.5"
1m40 - 1m55    EXPERT    18.5" - 19.5"
1m50 - 1m65    EXPERT XL    19.25" - 20"
1m55 - 1m70    PRO    20" - 20.5"
1m70 - 1m80    PRO XL    20.75" - 21.25"
1m80 >    PRO XXL    21.25" - 22"
