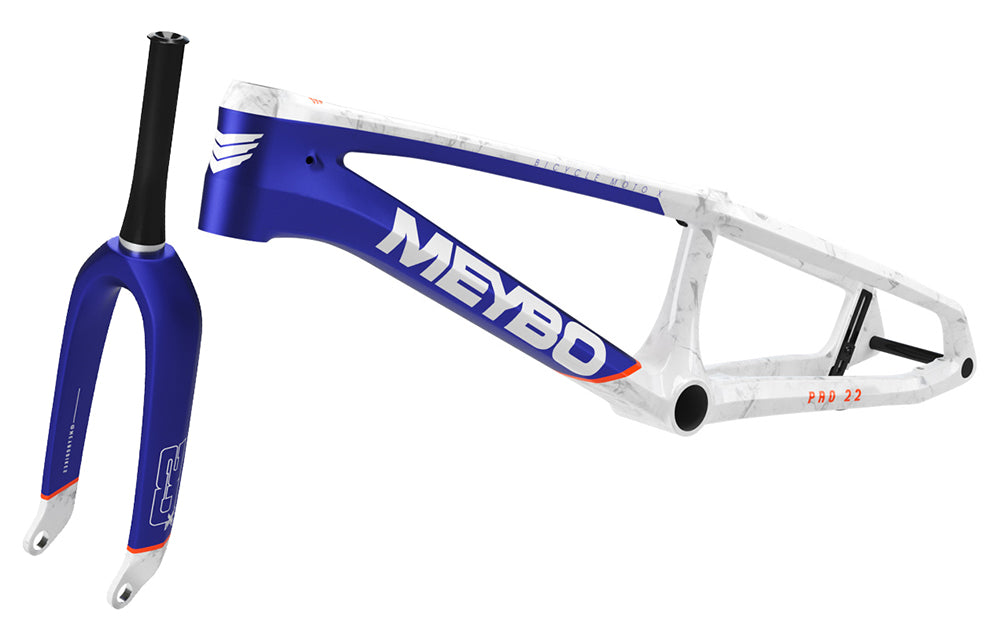

Meybo 2026.5 HSX Frame + Fork Matte Navy / Orange / White

New Mid year release 2026.5 colours in the 2026 HSX Carbon frame. 2026.5 frames are sold with matching SD carbon forks.

Meybo HSX Carbon frame features include:
UD Carbon Formed Tubes: 30% more stiffness = instantly faster
Meybo fixed length chainstay with 15mm rear drop outs
> Ensure you always have the same Chainstay length whatever gear you run
> Easy, fast and straight mounting of your rear wheel
> Disc brake directly mounted on the frame, no adaptor needed
Unique CNC Alloy / PE1000 Meybo chain tensioner system included
Supplied with 7005 CNC 15mm rear axle
Flat mount Disk brake, no V-Brake mounts
Integrated brake line through the frame
Meybo integrated seatclamp included
OS wheel compatible

Pro L 21" frame spec:
Tapered head tube
BB86 bottom bracket for optimal stiffness (For 24 and 30mm spindle cranks)
27.2 seat post
369mm chain stay
Weight 1240g

Pro XL 21.5" frame spec:
Tapered head tube
BB386 bottom bracket for optimal stiffness (For 24 and 30mm spindle cranks)
27.2 seat post
380mm chain stay
Weight 1376g

Pro XXL 22" frame spec:
Tapered head tube
BB386 bottom bracket for optimal stiffness (For 24 and 30mm spindle cranks)
27.2 seat post
386mm chain stay
Weight 1390g

Pro XXXL 22.5" frame spec:
Tapered head tube
BB386 bottom bracket for optimal stiffness (For 24 and 30mm spindle cranks)
27.2 seat post
393mm chain stay
Weight 1417g

Pro Cruiser 22" frame spec:
Tapered head tube BB386 bottom bracket for optimal stiffness (For 24 and 30mm spindle cranks)
27.2 seat post
393mm chain stay
Weight 1509g

SD Fork 20" Carbon Pro Tapered 20mm
Tapered 1.5" to 1 1/8" steerer
Aluminum 7075-T6 steerer tube
20mm alxe
Steerer Length 180mm
Compression Bolt M22 x 20mm
Fork Height 310mm (20")
Offset 30mm
Dropout Width 8mm
Weight: 680g (20" with compression screw)
Rider weight limit 95kg
