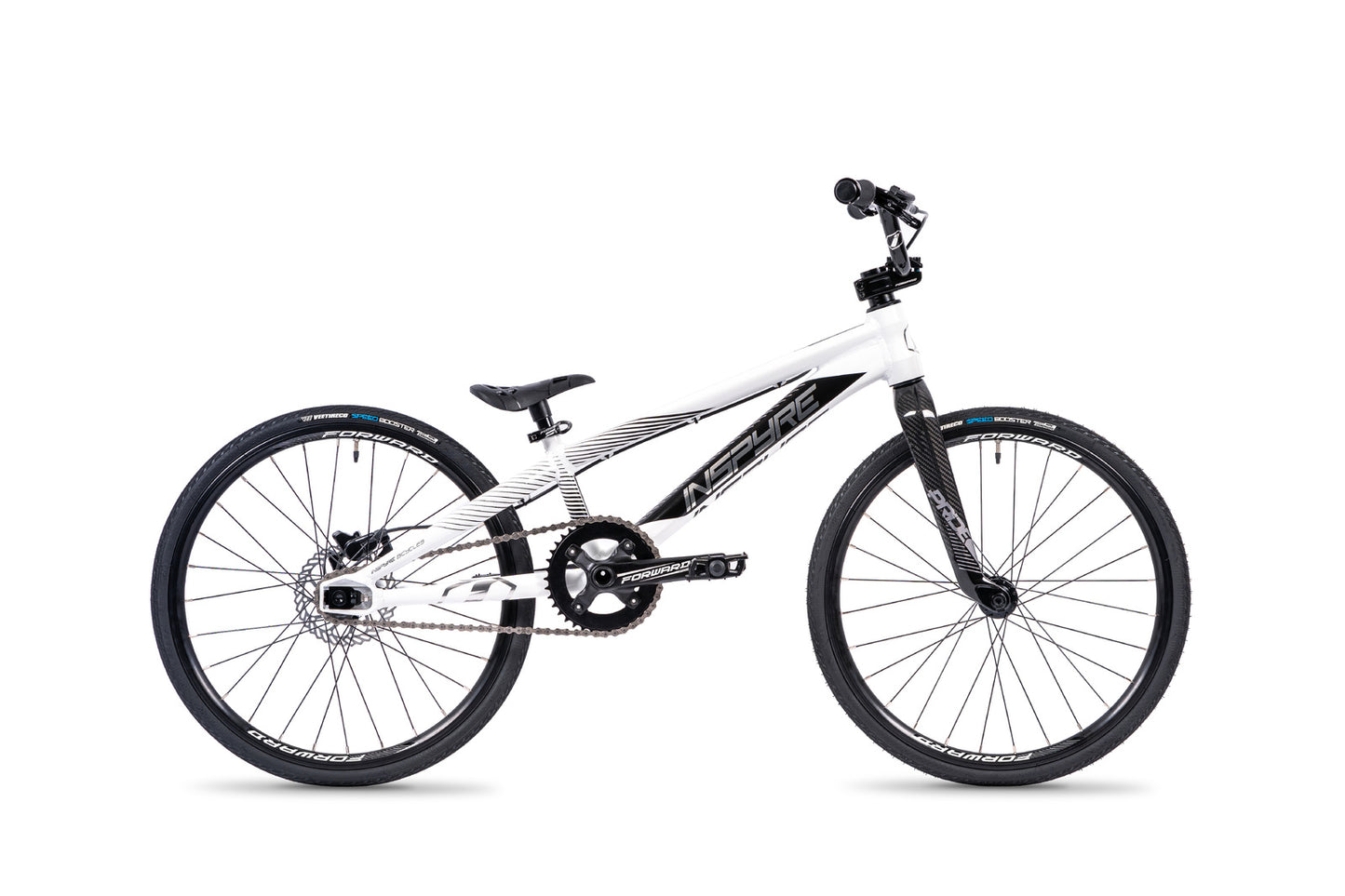

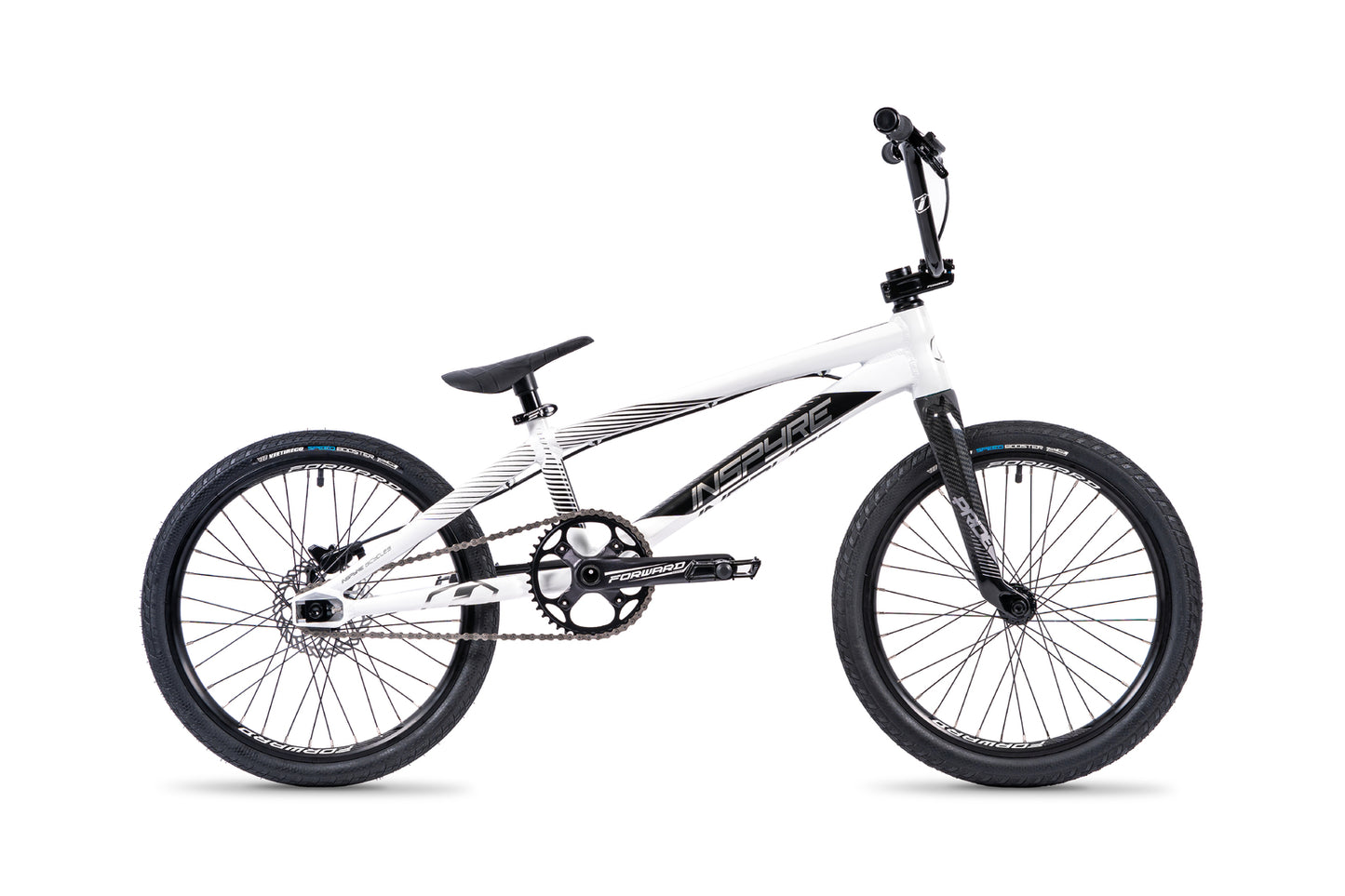

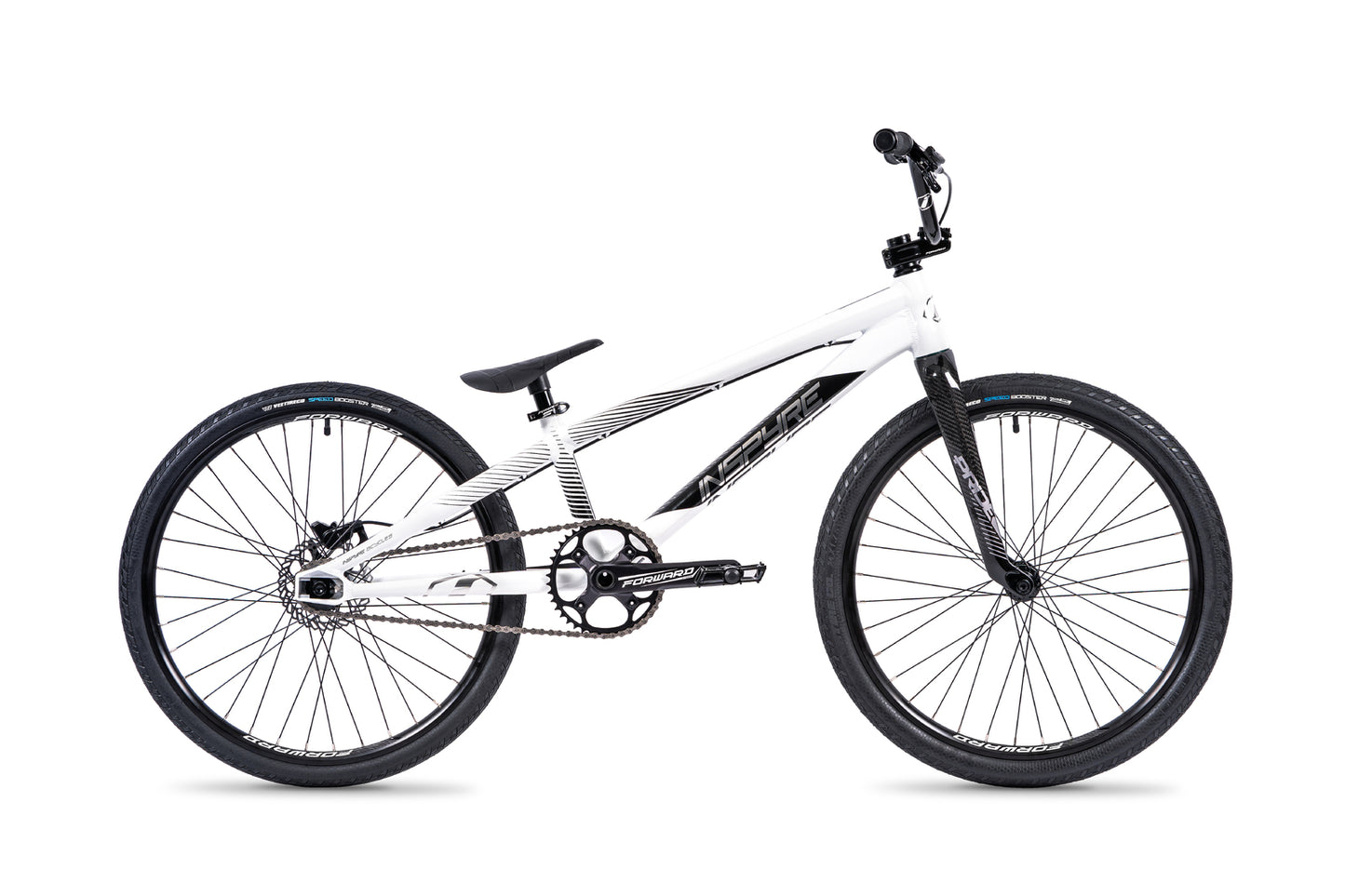

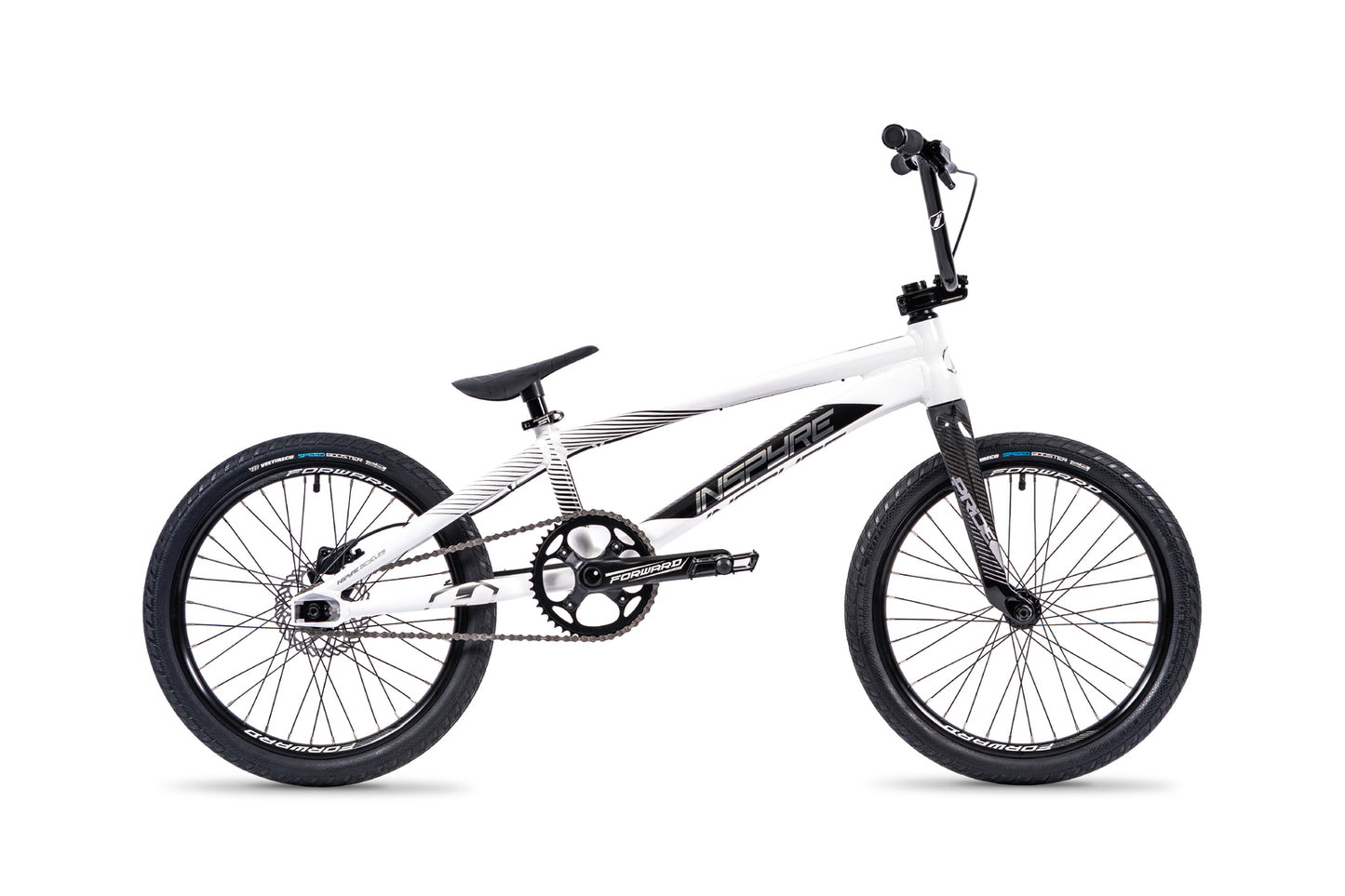

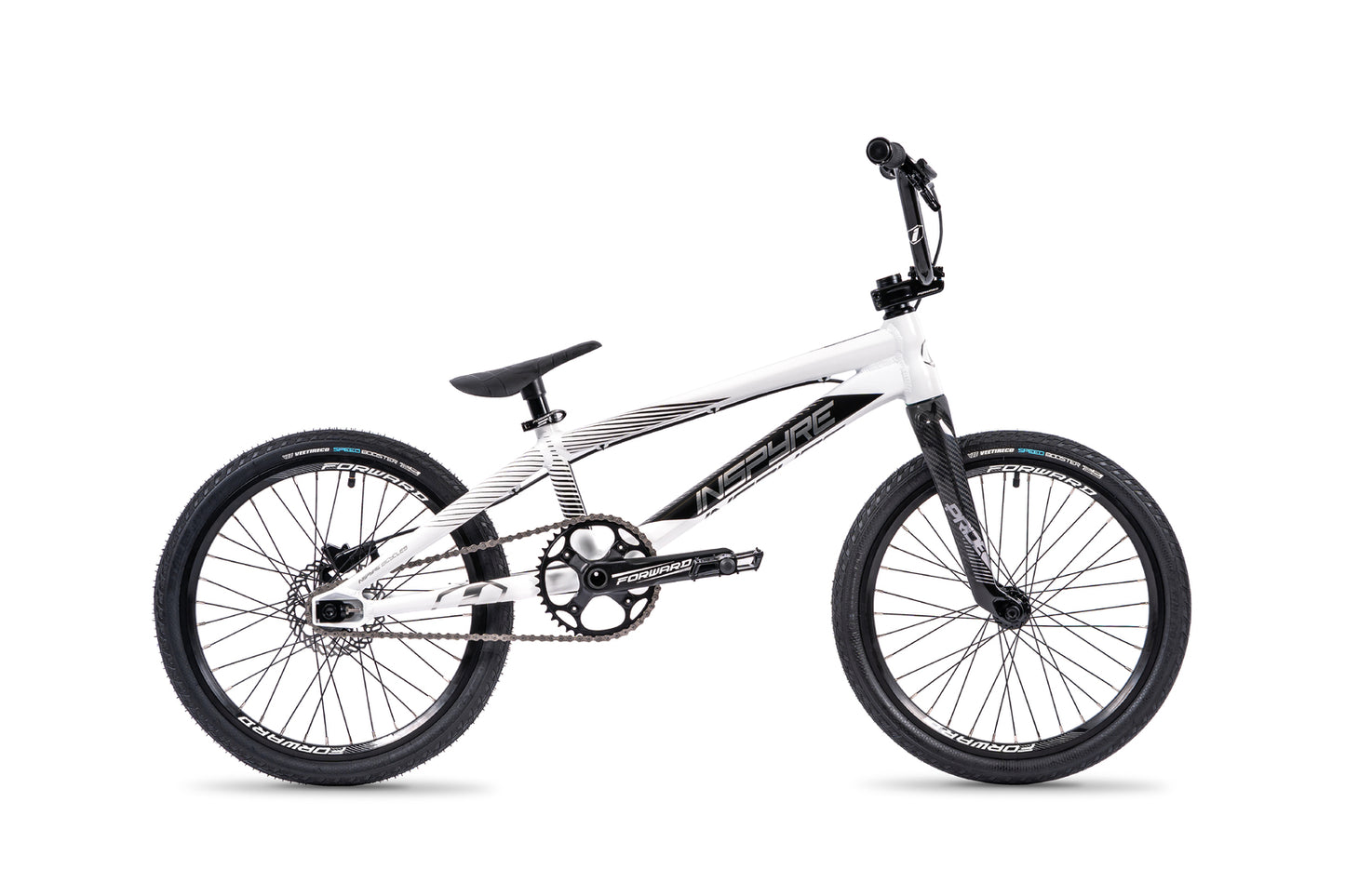

INSPYRE EVO-C Disc Complete Bike

 The EVO-C Disk, designed to be „Race Ready“ right out of the box, is still evolving with 2 new features and has a Carbon Fork (Pride Racing Slik 2.0) to get a higher brand of the EVO-C series.

The braking system has been upgraded. The EVO-C Disk range is now equipped with a Forward brake, offering high-end braking.

The Forward rear hub retains its 150 points, and 6 pawls engagement system. The aluminum hub body offers a new, bigger shape ! Visually, we are getting closer and closer to a very high-end hub.

IN DETAIL:

• 6061-T6 Aluminum frame – Hydroformed Tubes
• Closed SWELL dropouts with tensioners
• Tapered head tube from Expert XL
• Forward Joyride AM 2 pieces external BB crankset
• Forward hub 6 pawls 150 engagement points, new and larger hub body
• Front hub female bolts and sealed bearings
• Forward Joyride double wall rims
• SHIMANO MT200 Hydraulic disc brake
• Vee Speedbooster tires

JUNIOR SPECS:

• FRAME : Inspyre Evo-C Disk Junior – 18.75’’ Premium Alu 6061-T6 – Tubes hydroformed triple butted – Dropout Swell 3D forged
• COG : CrMo 16T – 1/2’’ x 3/32’’
• CHAIN : KMC Z-1 – 1/2’’ x 3/32’’
• SPROCKET : Aluminium 4 points 38T – 110mm
• GEAR : 38 x 16
• SEAT CLAMP DIAM. : Forward AM 25,4mm
• DISC : Forward Joyride AM 140mm
• BRAKE : SHIMANO MT200
• FORK : Pride Slik 2.0 Carbone – Pivot 1-1/8’‘ – tapered legs
• ADDITIONNAL FORK : Inspyre Evo – 100% Chromoly – Pivot 1-1/8″ – 10mm
• BAR : Inspyre Evo – Chromoly 4.25’’ x 22’’ – BackSweep : 7° / UpSweep : 2°
• REAR RIM : Forward Joyride Aero – Aluminium 28H – Double walls
• FRONT RIM : Forward Joyride Aero – Aluminium 28H – Double walls
• HEADSET : Semi Integrated – Ring bearings – ZS44 | ZS44
• BRAKE LEVER : SHIMANO MT200
• REAR HUB : Forward Joyride Disc – Body aluminium Cassette 28H – 10mm – 100% ring bearings – 150 engagement points – 6 pawls – Female bolts – ISO 6
• FRONT HUB : Forward Joyride – Body aluminium 28H – 10mm – 100% ring bearings – Female bolts
• PEDALS : Alu Mini 9/16
• CRANKSET : Forward Joyride AM 2 pieces – 4 Points – 150mm
• TIRES : Vee Tire® Speedbooster 20’’x1-3/8 (AV) / Vee Tire® Speedbooster 20’’x1-1/8 (AR)
• WEIGHT : —
• GRIPS : Forward Lock On 95mm – Krayton
• STEM : Forward – Top Load – Aluminium 6061-T6 – 40mm
• SPOKES : Stainless 14G
• SEAT : Combo 22.2mm
• CHAIN TENSIONERS : Swell integrated
• TOP TUBE : 18,75″
• BOTTOM BRACKET : External BSA – EB24 ring bearings
• HEAD SPOKES : Brass 14G
• RIDER HEIGHT : 1m35 – 1m45

EXPERT SPECS:

• FRAME : Inspyre Evo-C Disk Expert – 20’’ Premium Alu 6061-T6 – Tubes hydroformed triple butted – Dropout Swell 3D forged
• COG : 16T – 1/2’’ x 3/32’’
• CHAIN : KMC Z-1 – 1/2’’ x 3/32’’
• SPROCKET : Aluminium 4 points 41 – 110mm
• GEAR : 41 x 16
• SEAT CLAMP DIAM. : Forward AM 31,8mm
• DISC : Forward Joyride AM 140mm
• BRAKE : SHIMANO MT200
• FORK : Pride Slik 2.0 Carbone – Pivot 1-1/8’‘ . 1.5″ Tapered and tapered legs
• ADDITIONNAL FORK : Inspyre Evo – 100% Chromoly – 10mm
• BAR : Inspyre Evo – CrMo 6,5’’ x 26’’ – BackSweep : 7° / Upsweep : 2°
• REAR RIM : Forward Joyride Aero – Aluminium 36H – Double walls
• FRONT RIM : Forward Joyride Aero – Aluminium 36H – Double walls
• HEADSET : Tapered Integrated – Sealed bearings – IS42.2 | IS52.2
• BRAKE LEVER : SHIMANO MT200
• REAR HUB : Forward Joyride Disc – Body aluminium Cassette 36H – 10mm – 100% ring bearings – 150 engagement points – 6 pawls – Female bolts – ISO 6
• FRONT HUB : Forward Joyride – Body aluminium 36H – 10mm – 100% ring bearings – Female bolts
• PEDALS : Alu 9/16
• CRANKSET : Forward Joyride AM 2 pieces – 4 Points – 170mm
• TIRES : Vee Tire® Speedbooster 20’’x1.40″ (AV) / Vee Tire® Speedbooster 20’’x1.40″ (AR)
• WEIGHT : —
• GRIPS : Forward Lock On 130mm – Krayton
• STEM : Forward – Top Load – Aluminium 6061-T6 – 50mm
• SPOKES : Stainless 14G
• SEAT : Combo 27.2mm
• CHAIN TENSIONERS : Swell integrated
• TOP TUBE : 20″
• BOTTOM BRACKET : External BSA – EB24 ring bearings
• HEAD SPOKES : Brass 14G
• RIDER HEIGHT : 1m50 – 1m65

PRO SPECS:

• FRAME : Inspyre Evo-c Disk Pro – 20,75’’ Premium Alu 6061-T6 – Tubes hydroformed triple butted – Dropout Swell 3D forged
• COG : 16T – 1/2’’ x 3/32’’
• CHAIN : KMC Z-1 – 1/2’’ x 3/32’’
• SPROCKET : Aluminium 4 points 42 – 110mm
• GEAR : 42 x 16
• SEAT CLAMP DIAM. : Forward AM 31,8mm
• DISC : Forward Joyride AM 140mm
• BRAKE : SHIMANO MT200 Hydraulic brakes
• FORK : Pride Slik 2.0 Carbone – Pivot 1-1/8’‘ . 1.5″ Tapered and tapered legs
• ADDITIONNAL FORK : Inspyre Evo – 100% Chromoly – Pivot 1-1/8″ – 10mm
• BAR : Inspyre Evo – CrMo 7,5’’ x 26.7’’ – BackSweep : 7° / UpSweep : 1.5°
• REAR RIM : Forward Joyride Aero – Aluminium 36H – Double walls
• FRONT RIM : Forward Joyride Aero – Aluminium 36H – Double walls
• HEADSET : Tapered Integrated – Sealed bearings – IS42.2 | IS52.2
• BRAKE LEVER : SHIMANO MT200
• REAR HUB : Forward Joyride Disc – Body aluminium Cassette 36H – 10mm – 100% ring bearings – 150 engagement points – 6 pawls – Female bolts – ISO 6
• FRONT HUB : Forward Joyride – Body aluminium 36H – 10mm – 100% ring bearings – Female bolts
• PEDALS : Alu 9/16
• CRANKSET : Forward Joyride AM 2 pieces – 4 Points – 175mm
• TIRES : Vee Tire® Speedbooster 20’’x1.75″ (AV) / Vee Tire® Speedbooster 20’’x1.60″ (AR)
• WEIGHT : —
• GRIPS : Forward Lock On 130mm – Krayton
• STEM : Forward – Top Load – Aluminium 6061-T6 – 50mm
• SPOKES : Stainless 14G
• SEAT : Combo 27.2mm
• CHAIN TENSIONERS : Swell integrated
• TOP TUBE : 20.75″
• BOTTOM BRACKET : External BSA – EB24 ring bearings
• HEAD SPOKES : Brass 14G
• RIDER HEIGHT : 1m55 – 1m70

PRO XL SPECS:

• FRAME : Inspyre Evo Disk Pro XL – 21.25’’ Premium Alu 6061-T6 – Tubes hydroformed triple butted – Dropout Swell 3D forged
• COG : 16T – 1/2’’ x 3/32’’
• CHAIN : KMC Z-1 – 1/2’’ x 3/32’’
• SPROCKET : Aluminium 4 points 43T – 110mm
• GEAR : 43 x 16
• SEAT CLAMP DIAM. : Forward AM 31,8mm
• DISC : Forward Joyride AM 140mm
• BRAKE : SHIMANO MT200
• FORK : Pride Slik 2.0 Carbone – Pivot 1-1/8’‘ . 1.5″ Tapered and tapered legs
• ADDITIONNAL FORK : Inspyre Evo – 100% Chromoly – 1-1/8″ > 1.5″
• BAR : Inspyre Evo – CrMo 8’’ x 28.5’’ – BackSweep : 7° / UpSweep : 1.5°
• REAR RIM : Forward Joyride Aero – Aluminium 36H – Double walls
• FRONT RIM : Forward Joyride Aero – Aluminium 36H – Double walls
• HEADSET : Tapered Integrated – Sealed bearings – IS42.2 | IS52.2
• BRAKE LEVER : SHIMANO MT200
• REAR HUB : Forward Joyride Disc – Body aluminium Cassette 36H – 10mm – 100% ring bearings – 150 engagement points – 6 pawls – Female bolts – ISO 6
• FRONT HUB : Forward Joyride – Body aluminium 36H – 10mm – 100% ring bearings – Female bolts
• PEDALS : Alu 9/16
• CRANKSET : Forward Joyride AM 2 pieces – 4 Points – 175mm
• TIRES : Vee Tire® Speedbooster 20’’x1.75″
• WEIGHT : —
• GRIPS : Forward Lock On 130mm – Krayton
• STEM : Forward – Top Load – Aluminium 6061-T6 – 50mm
• SPOKES : Stainless 14G
• SEAT : Combo 27.2mm
• CHAIN TENSIONERS : Swell integrated
• TOP TUBE : 21.25″
• BOTTOM BRACKET : External BSA – EB24 ring bearings
• HEAD SPOKES : Brass 14G
• RIDER HEIGHT : 1m70 – 1m80

PRO CRUISER SPECS:

• FRAME : Inspyre Evo-C Disk Cruiser 24″ – 21.85’’ Premium Alu 6061-T6 – Tubes hydroformed triple butted – Dropout Swell 3D forged
• COG : 16T – 1/2’’ x 3/32’’
• CHAIN : KMC Z-1 – 1/2’’ x 3/32’’
• SPROCKET : Aluminium 4 points 41T – 110mm
• GEAR : 41 x 18
• SEAT CLAMP DIAM. : Forward AM 31,8mm
• DISC : Forward Joyride AM 140mm
• BRAKE : SHIMANO MT200
• FORK : Pride Slik 2.0 Carbone 24″ Cruiser – Pivot 1-1/8’‘ . 1.5″ Tapered and tapered legs
• ADDITIONNAL FORK : Inspyre Evo 24″ – 100% Chromoly – 1-1/8″ Tapered legs
• BAR : Inspyre Evo – CrMo 5.5’’ x 27.5’’ – Backsweep : 7° / Upsweep : 1.5°
• REAR RIM : Forward Joyride Aero 24″ – Aluminium 36H – Double walls
• FRONT RIM : Forward Joyride Aero 24″ – Aluminium 36H – Double walls
• HEADSET : Tapered Integrated – Sealed bearings – IS42.2 | IS52.2
• BRAKE LEVER : SHIMANO MT200
• REAR HUB : Forward Joyride Disc – Body aluminium Cassette 36H – 10mm – 100% ring bearings – 150 engagement points – 6 pawls – Female bolts – ISO 6
• FRONT HUB : Forward Joyride – Body aluminium 36H – 10mm – 100% ring bearings – Female bolts
• PEDALS : Alu 9/16
• CRANKSET : Forward Joyride AM 2 pieces – 4 Points – 175mm
• TIRES : Vee Tire® Speedbooster 24’’x1.75″ (AV) / Vee Tire® Speedbooster 24’’x1.60″ (AR)
• WEIGHT : —
• GRIPS : Forward Lock On 130mm – Krayton
• STEM : Forward – Top Load – Aluminium 6061-T6 – 50mm
• SPOKES : Stainless 14G
• SEAT : Combo 27.2mm
• CHAIN TENSIONERS : Swell integrated
• TOP TUBE : 21.85″
• BOTTOM BRACKET : External BSA – EB24 ring bearings
• HEAD SPOKES : Brass 14G
• RIDER HEIGHT : 1m70 < 1m85
