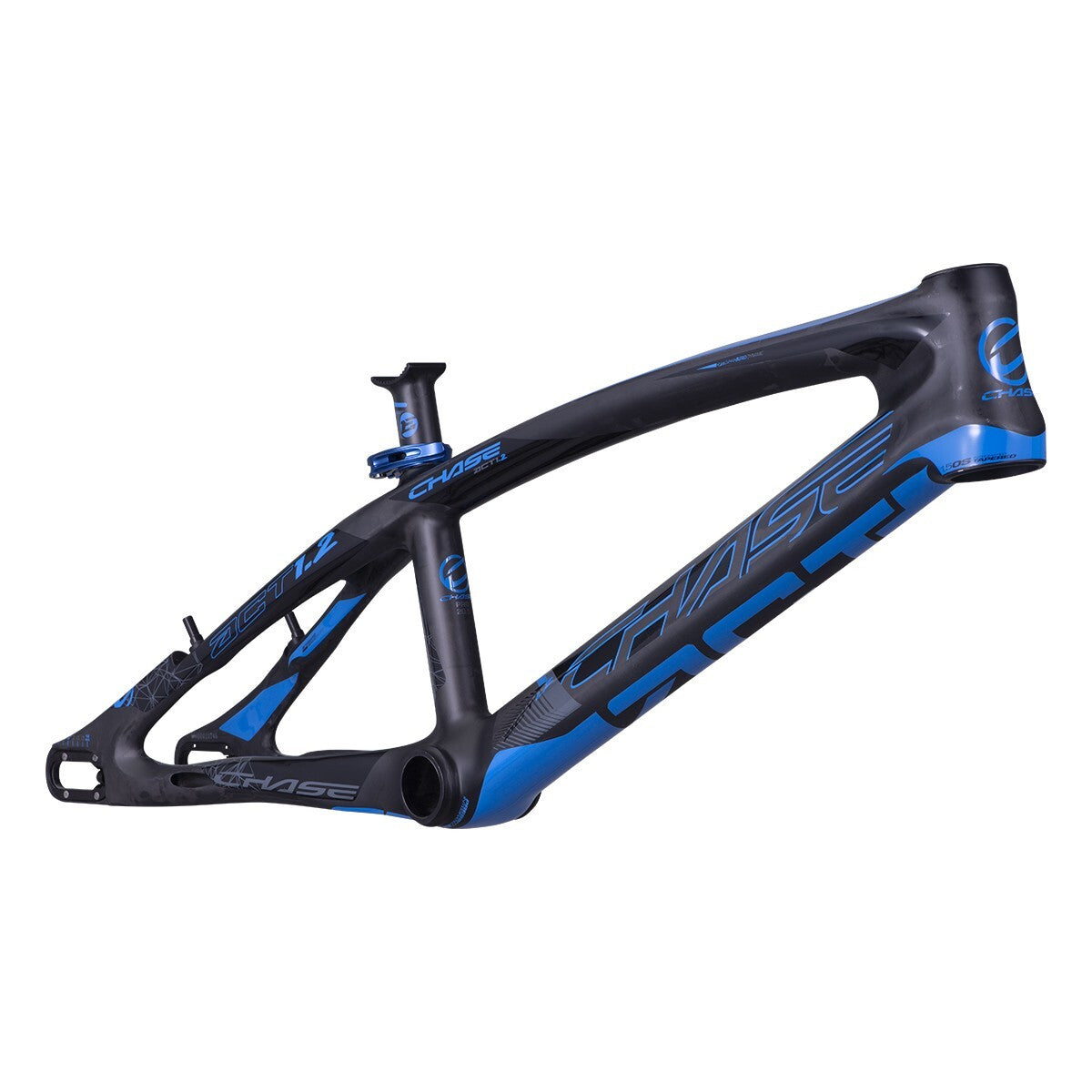

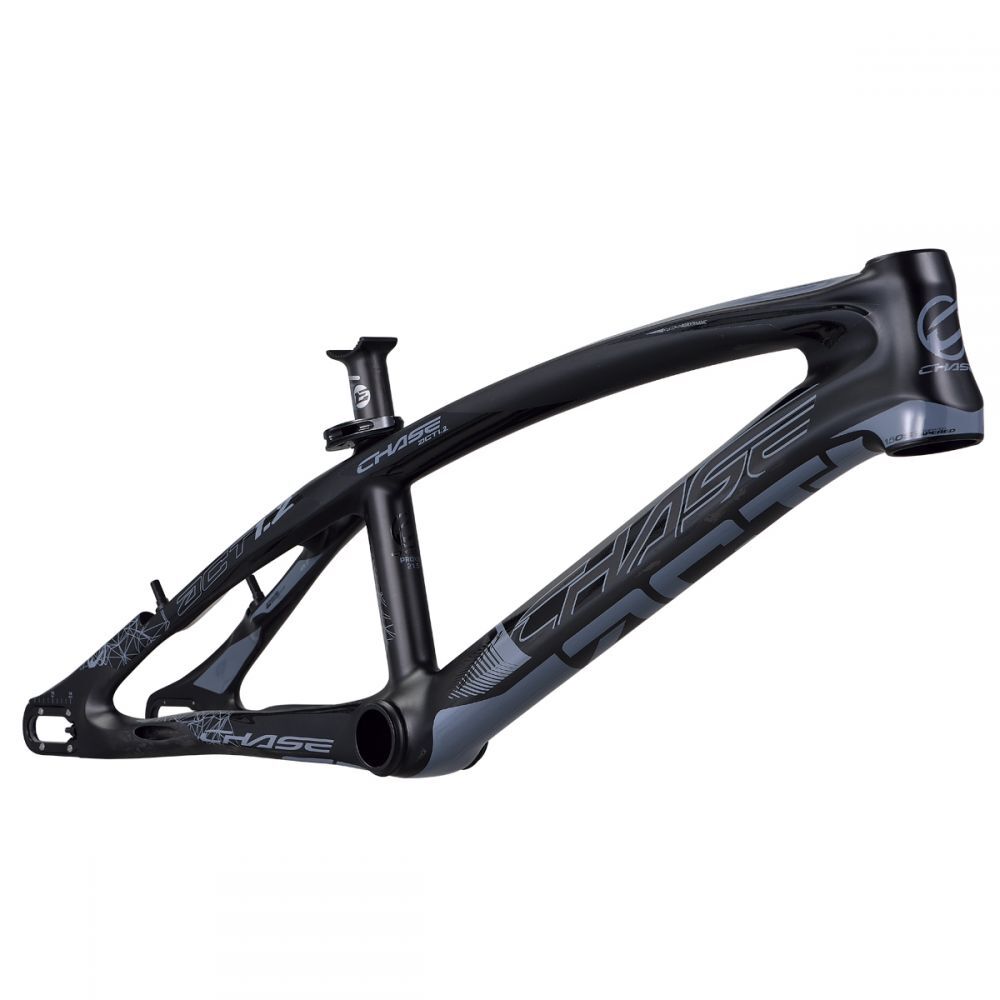

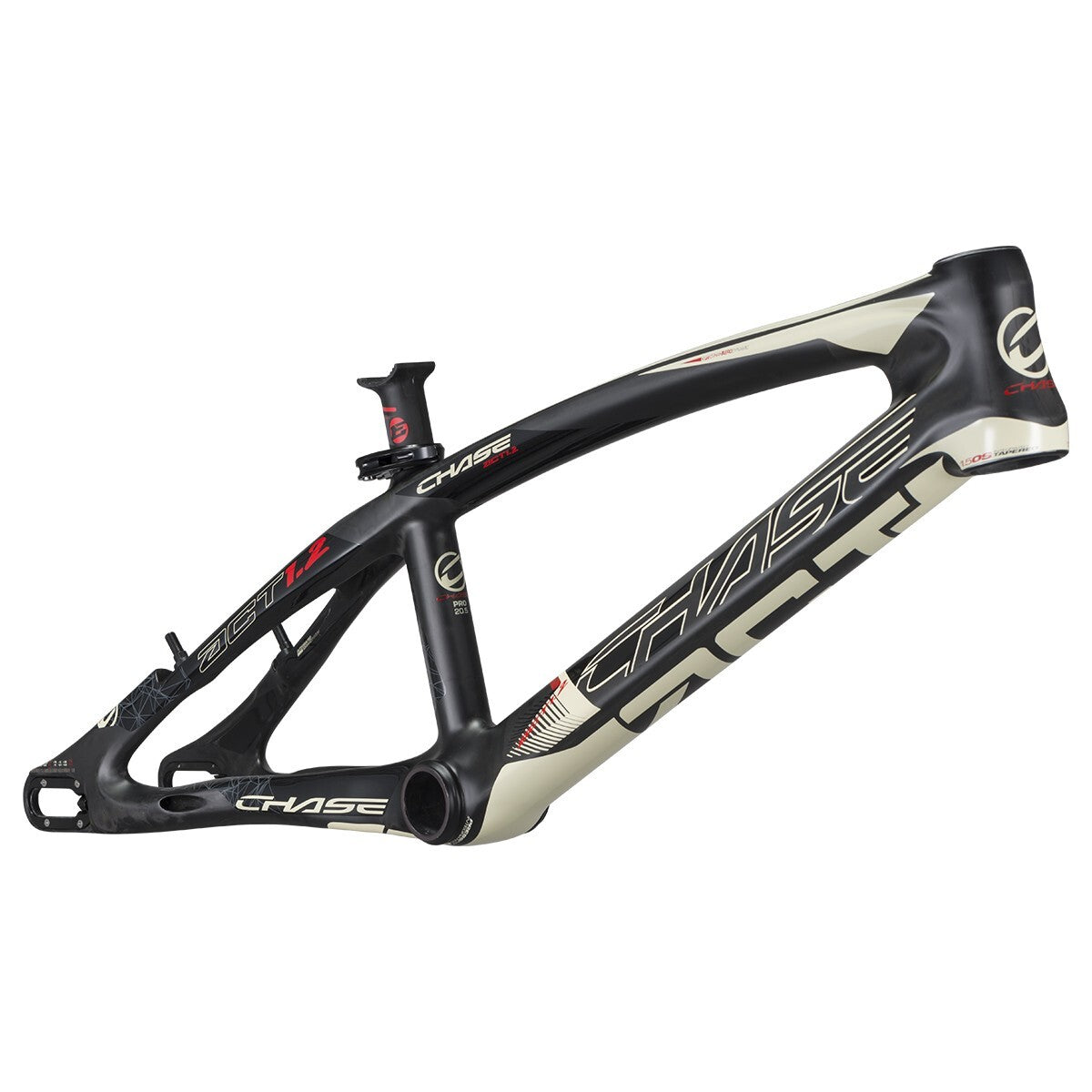

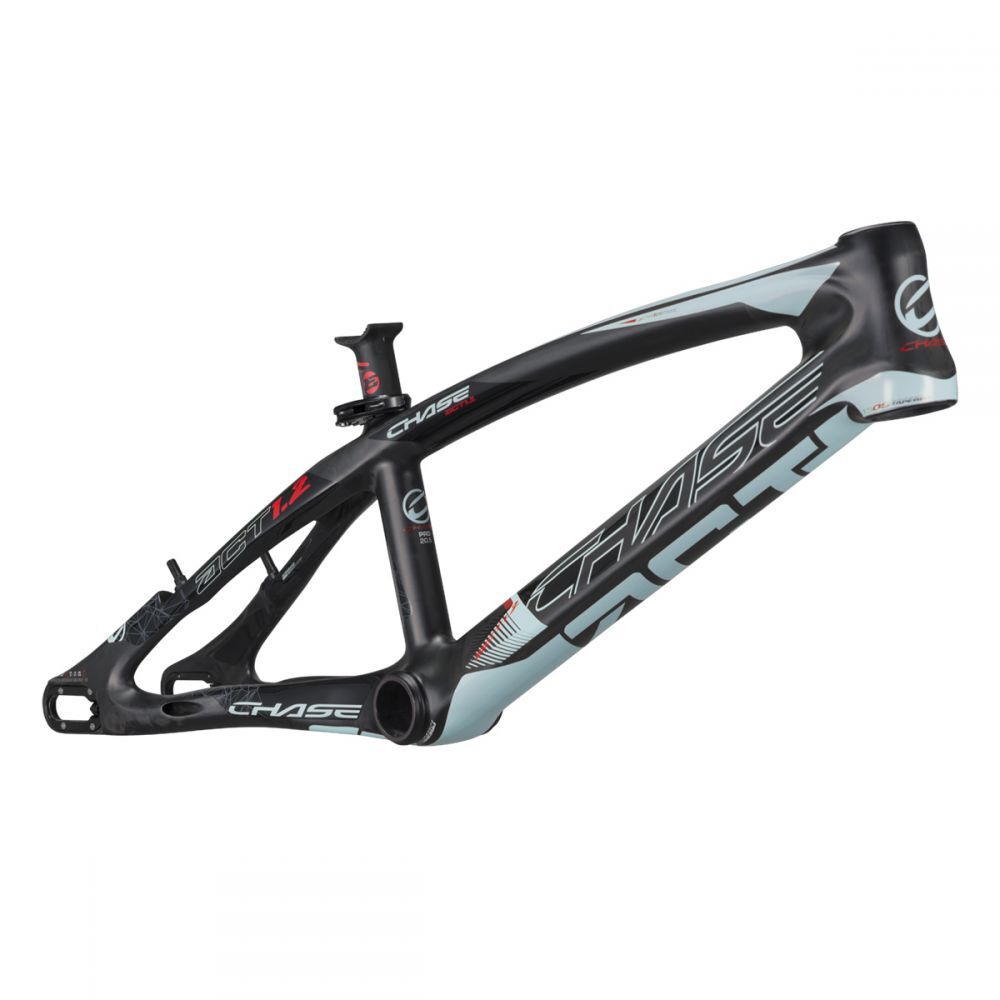

CHASE ACT1.2 CARBON FRAME

Get ready to dominate the race track with the Chase ACT 1.2 Carbon Frame. This advanced carbon technology frame uses the latest manufacturing techniques to create a durable and responsive BMX racing frame that can withstand the power of top-level pros. The ACT 1.2 frame is an upgraded version of the ACT 1.0, featuring small but significant improvements.

The ACT 1.2 frame is made with uni-directional carbon technology and features an integrated tapered headset, internal brake cable routing, a Chase Aero seat post and seat clamp system, and a press fit BB86 bottom bracket. It also has extra-long reinforced stainless steel 20mm dropouts with a built-in alloy tensioner, as well as a 10mm (3/8) axle adapter. The frame is available in 6 size options: Pro, Pro+, Pro XL, Pro XL+, Pro XXL, and Pro XXL+.

Over the past 2 years, the ACT frame has won more UCI and USA BMX Elite Men's Pro races than any other frame. In the past year, Chase has worked hard to make the ACT 1.2 even better, with design modifications, testing, and more testing to improve chain clearance for larger gear ratios, clearance for more styles of disc brake calibers with the optional Elevn Disc adapter, and a new matte finish and gloss graphics.

The ACT 1.2 is made with high-quality UD (uni-directional) carbon fiber, which has the highest tensile strength and tensile modulus of any carbon fiber. This makes it the ultimate choice for a BMX frame, providing maximum strength and stiffness while remaining lightweight. The ACT 1.2 also includes an internal and external chain tensioner system to allow for full use of the rear dropout length when using the optional Elevn Disc Brake Adapter. Upgrade to the Chase ACT 1.2 Carbon Frame and experience the ultimate in performance and quality.

• Frame material: UD (uni-directional) carbon fiber
• Headset: Integrated tapered, 1.5" OS bottom and 1-1/8" top with reinforced alloy cup
• Brake cable routing: Internal
• Seat post and seat clamp system: Aero
• Bottom bracket: Press fit BB86 with reinforced alloy cup
• Dropouts: 20mm plated enclosed plated dropouts with integrated chain tensioner system and included 10mm plate
• Chain tensioner system: Internal and external
• Sizes available: Pro, Pro+, Pro XL, Pro XL+, Pro XXL, Pro XXL+
• Finish: Matte with gloss graphics

INCLUDED WITH EACH FRAME:

• ELEVN MONOCOQUE CARBON AERO SEAT POST 27.2 diameter 110mm length in matching colour

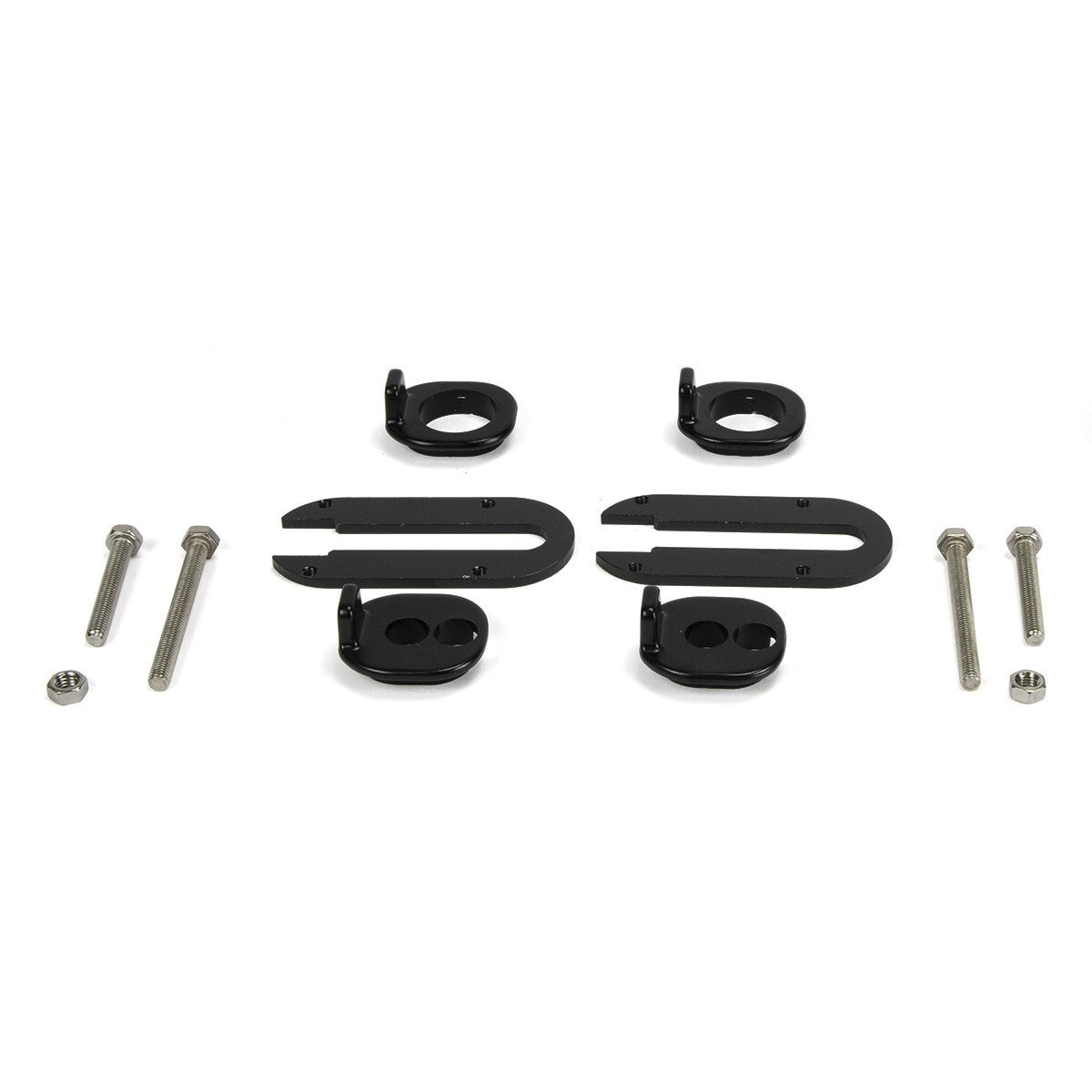

• 20MM DROP OUT FRAME PLATES installed, additionally each frame includes a 10mm (3/8″) drop out frame plate set up
• 20MM AND 10MM (3/8″) CHAIN TENSIONER SET BLOCKS, 15mm blocks available (Sold separately in Black Anodized only)
• OUTER CHAIN TENSIONER BOLTS set up as well as Internal Chain tensioner Bolts included



The Chase ACT 1.0 & RSP 4.0 Frames utilizes the Aero seat post tube, seat post, and seat post clamp into BMX racing. This is to not only to help gain fractions of a second on the track with improved aerodynamics, but the Aero tubes also offers a slightly stiffer feel. We know BMX bikes don’t need to go fully aero testing into a wind tunnel, but when races are won or lost by fractions of a second, every advantage will help.



The Chase ACT 1.0 & RSP 4.0 Frames both use a Press Fit style Bottom Bracket tube. Press Fit BB are a simple and easy way to install a Bottom Bracket, where the Bottom Bracket you supply for your frame has the Bearings in cups and simply press into the frame, eliminating the chance of damaging BB threads, with the traditional Euro BB. The BB is usually lighter and easier to install and remove as well.



The Chase ACT 1.0 & RSP 4.0 Frames both use a Integrated Headtube. Tapered head tubes offer a combination for the bearing sizes. Our tapered head tubes have a 1 1/8” upper diameter to 1.5” lower diameter. this allows you to run a tapered steer tube fork, or use a full 1 1/8” fork steer tube, with the offered 1.5” lower bearing, when the headset has an optional 1 1/8” to 1.5” fork race option.



The Chase ACT 1.0 and RSP Frames feature Internal Cable Routing thru the top tube, giving you the factory look, as well as providing protection for the brake cable and graphics, since the cable does not rub against the frame.
