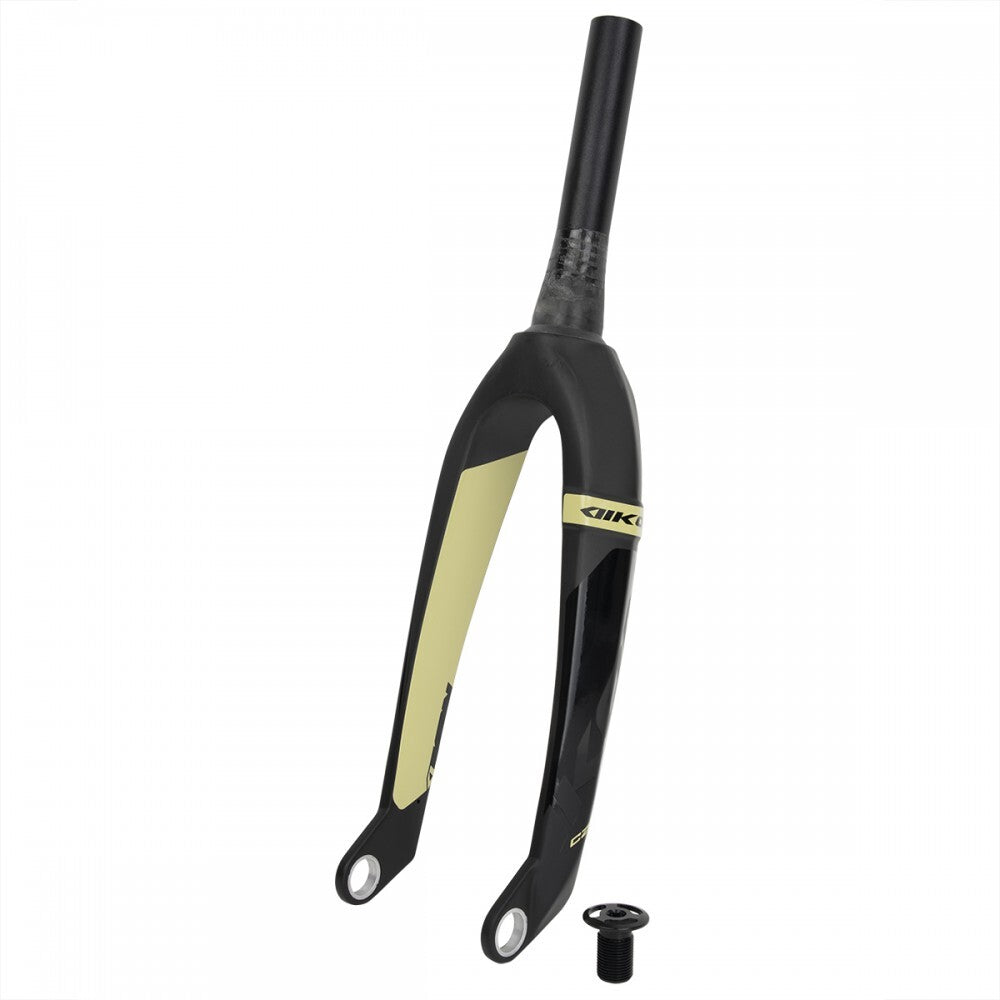

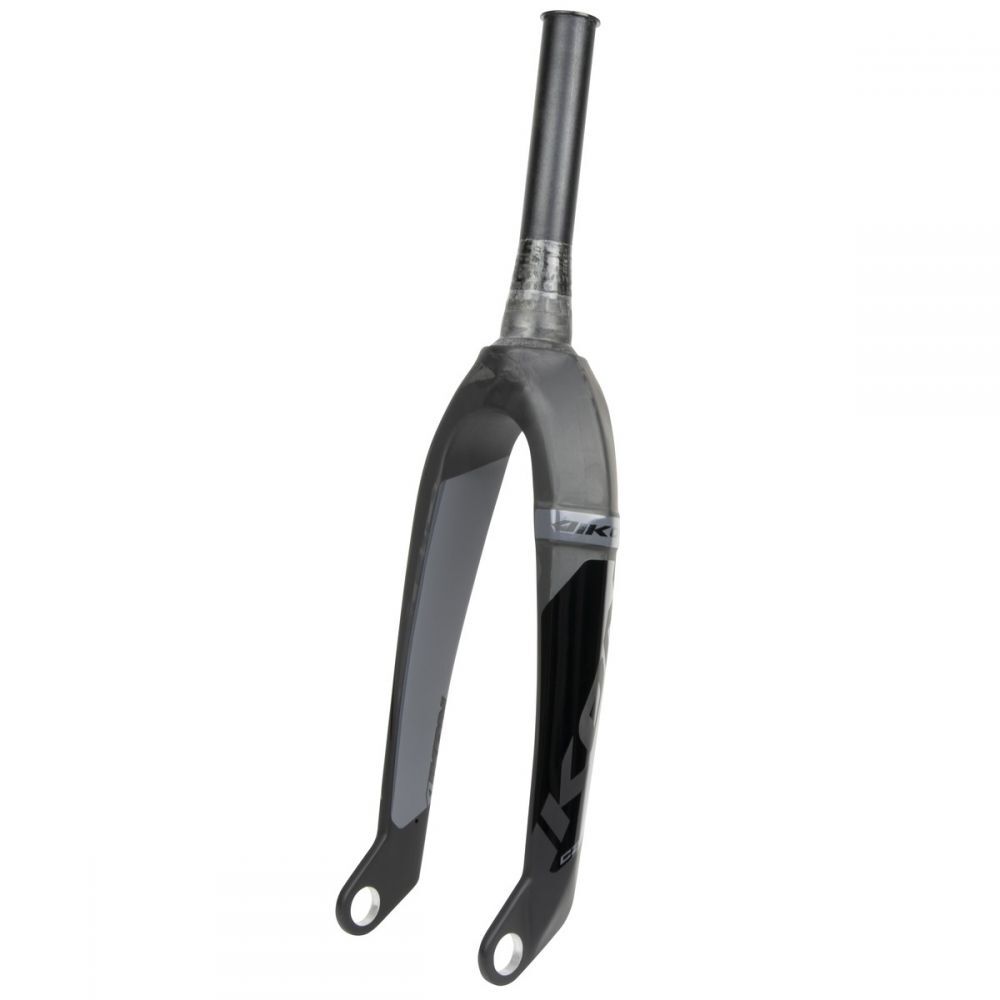

"Take your BMX riding to the next level with the IKON Carbon 20" Fork. Made with Toray UD Carbon fiber and featuring a tapered design, this fork is built for performance and style. The oversized crown construction blends perfectly with today's oversized headtubes, while the flow from front to back of the crown is unlike any other fork on the market. The 7075 T6 Aluminum steer tube is 6mm thick and tapered from 1 1/8th to 1.5 at the base, with an integrated fork crown race for 45 bearings. The 173mm steer tube length is bonded and keyed into the carbon crown, while the internal steer tube threads make for easy installation of the top cap/compressor bolt. The fork has a 305mm axle to crown measurement, 31mm dropout offset, and is designed for use with a 20mm axle (suggested length 112, not included). The IKON Carbon Forks come in six colors (white, neon yellow, blue, red, sand, or slate) and are offered in a matte UD carbon finish with glossy water applied graphics. Upgrade your bike today with the IKON Carbon 20" Fork."

TAPERED STEERED TUBE

Designed for tapered frame head tube with a 1-1/8″ top to 1.5″ bottom head tube.

REINFORCED 20MM DROPOUTS

Designed for 20mm thru axle, convertible to 10mm (3/8″ axles) with IKON axle adapters sold separately.

FEATURES :

Uni Directional Toray T700 Carbon Fiber weave
Aero Tapered fork legs and aero rear spoiler
Tapered 1-1/8″ to 1.5″ 7075 Aluminum steer tube
Oversized crown construction bonded and keyed into the carbon crown
Reinforced 6061 Aluminum 20mm Dropouts bonded and keys into the carbon legs

SPECIFICATIONS :

Material: Toray UD Carbon fiber
Steerer Material: 7075-T6 Aluminium – 6mm thick
Threadless steer tube: 1-1/8″ top – 1.5″ bottom
Integrated fork race built in for 45° bottom bearing
Steer tube length : 173mm
Dropouts: CNC Machined 6061-T6 Aluminium
Axle : 20mm Thru (112mm length suggested)
Axle to crown: 305mm
Offset: 31mm
Weight: 626 g / 22 oz
Colors: Matt UD Carbon Finish with Glossy Water Applied Graphics offered in 6 color options : White, Red, Blue, Sand, Slate or Neon Yellow,.

IKON 7075-T6 Alloy M18 Top Cap included
Weight: 15g / 0.52 oz
