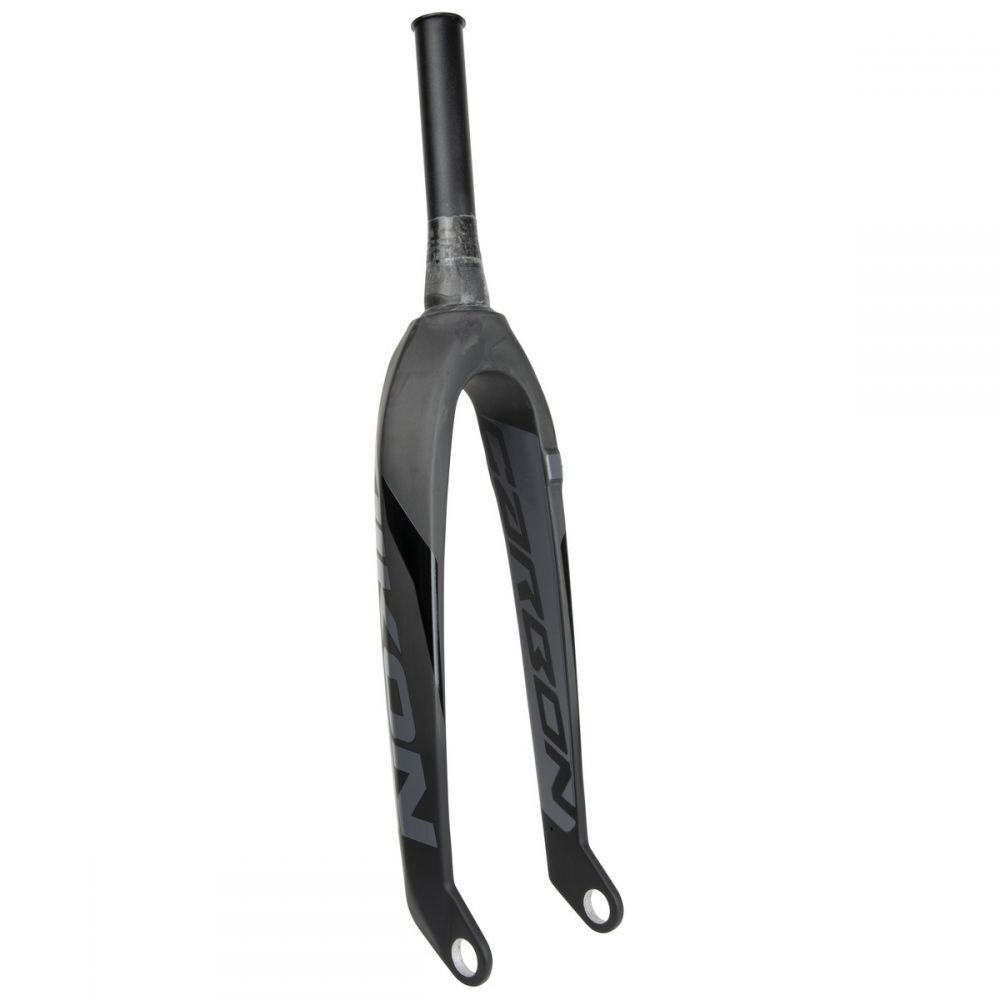

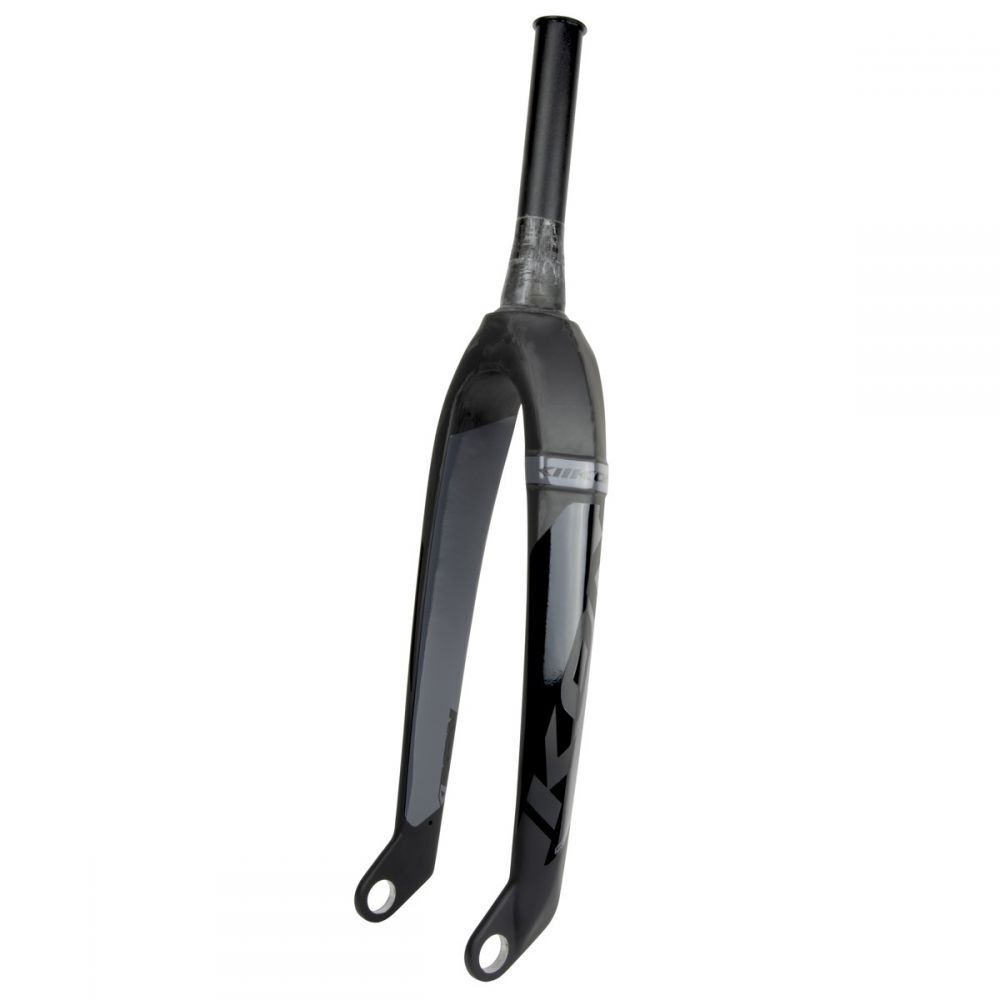

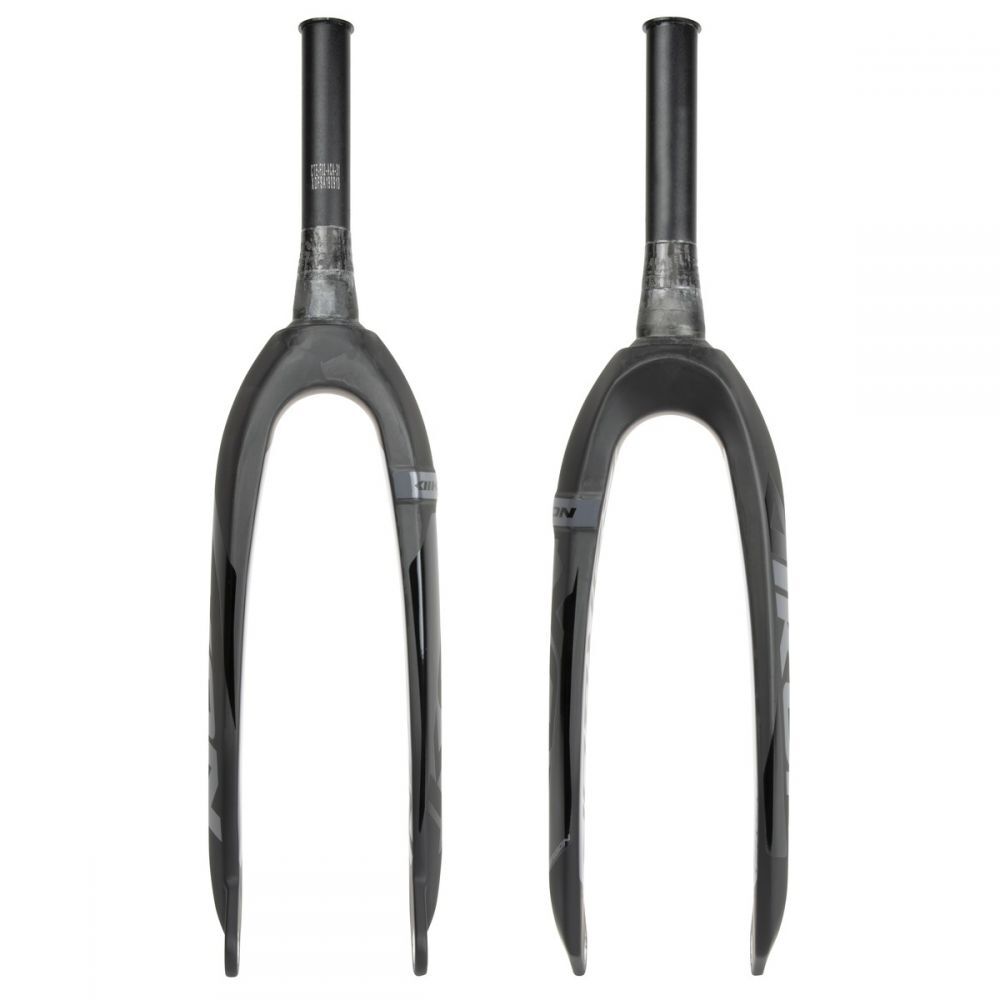

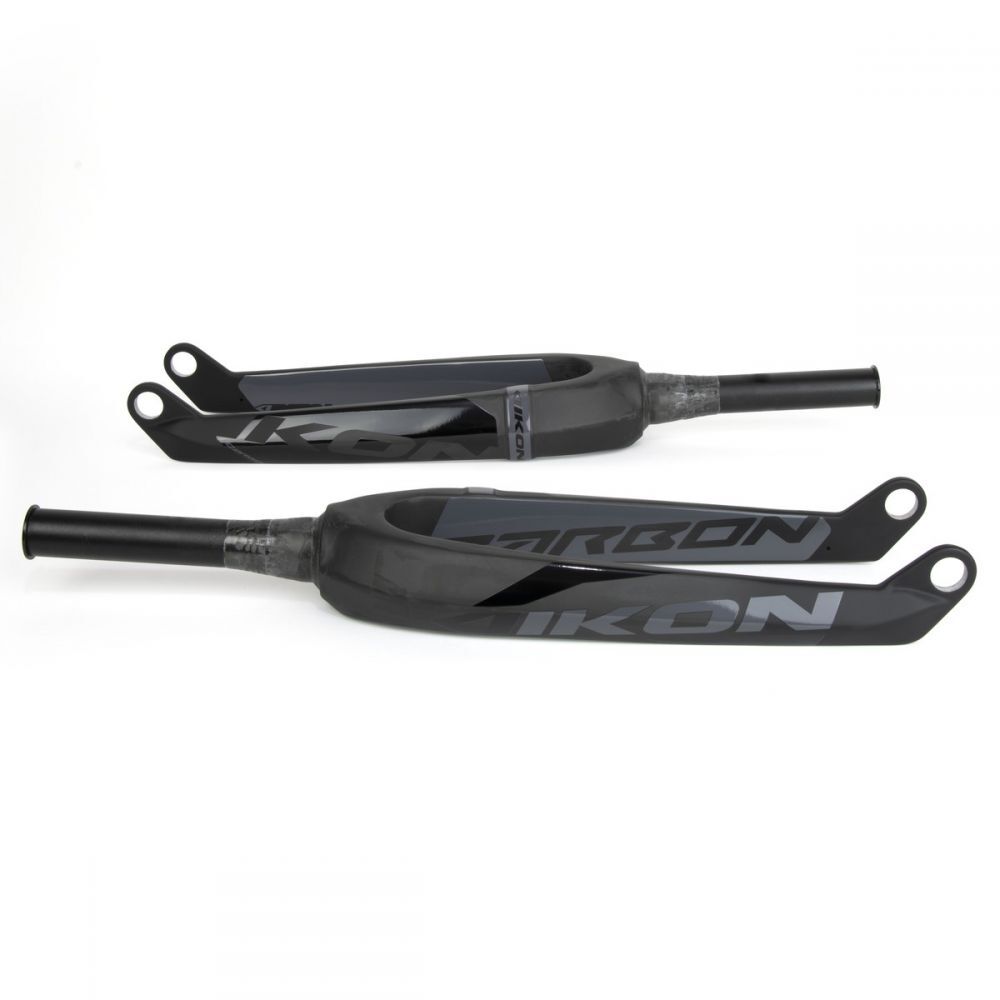

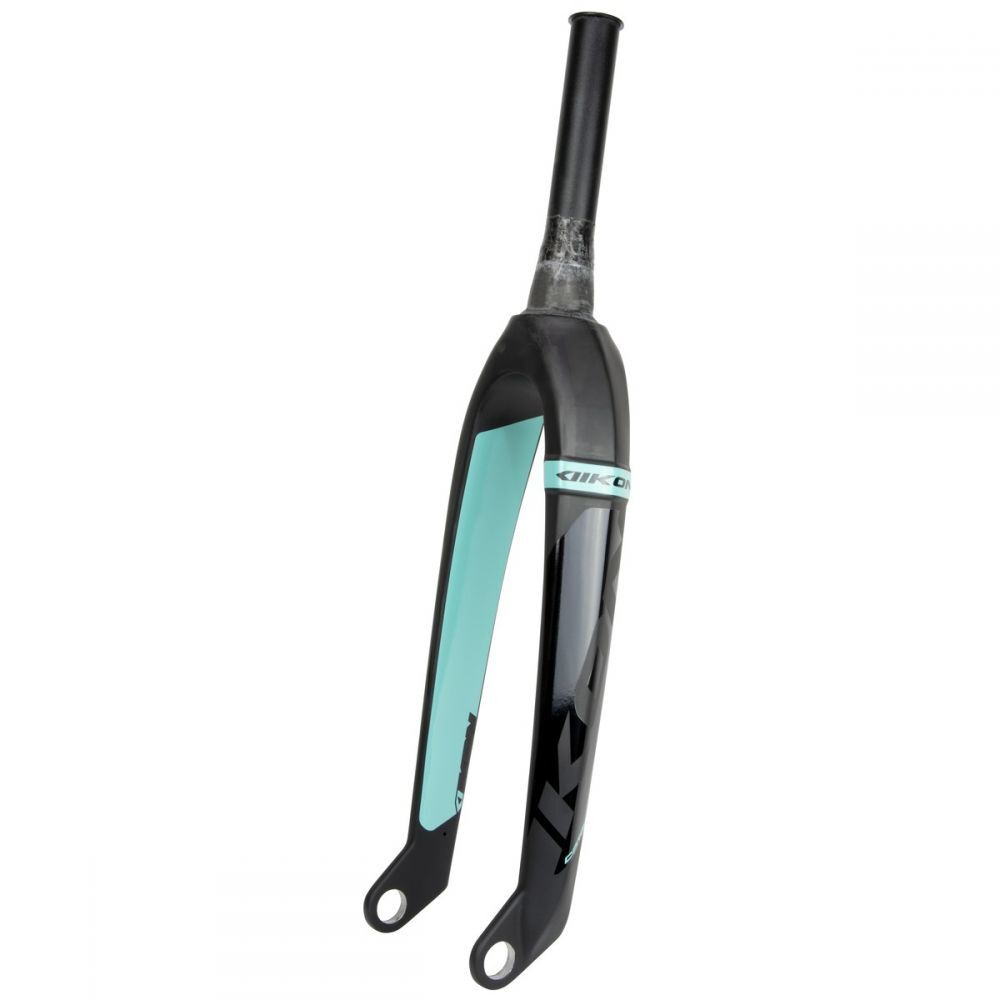

Introducing the IKON Carbon 24" Fork - the ultimate BMX racing fork. Designed and tested by our pro team riders Connor Fields and Joris Daudet, this fork is made with Toray UD Carbon fiber and features a tapered fork design, oversized crown construction, and a flow from front to back of the crown like no other fork in BMX. It also has elements of a aero racing spoiler on the rear for an extra touch of style.

Featuring a 7076 T6 Aluminum steer tube that is 6mm thick and tapered from 1 1/8th to 1.5 at the base, this fork also includes an intergraded fork crown race for 45 bearing, eliminating the need for a headset crown race and helping to save weight. With a steer tube length of 173mm and an internal steer tube thread for the top cap, this fork is easy to install and use.

The IKON Carbon 24" Fork has a unique tapered leg design with embossed features and a custom fork crown, as well as 6061 T6 Alloy reinforced 20mm dropouts bonded and keyed into the carbon legs. It also has a 31mm dropout offset and comes with an IKON alloy top cap/compressor bolt made of 7075T6 alloy. This fork has an axle to crown measurement of 353.5mm and weighs just 677g with the top cap (662g without).

Available in four colors - Carbon with White, Neon Yellow, Blue or Red - and with a matte UD carbon finish and glossy water applied graphics, the IKON Carbon 24" Fork is sure to make a statement on the track. It is designed for use with a 20mm axle (suggested length 112, not included). Upgrade your BMX setup with the IKON Carbon 24" Fork today.

TAPERED STEERED TUBE

Designed for tapered frame head tube with a 1-1/8″ top to 1.5″ bottom head tube.

REINFORCED 20MM DROPOUTS

Designed for 20mm thru axle, convertible to 10mm (3/8″ axles) with IKON axle adapters sold separately.

FEATURES :

Uni Directional Toray T700 Carbon Fiber weave
Aero Tapered fork legs and aero rear spoiler
Tapered 1-1/8″ to 1.5″ 7075 Aluminium steer tube
Oversized crown construction bonded and keyed into the carbon crown
Reinforced 6061 Aluminium 20mm Dropouts bonded and keys into the carbon legs

SPECIFICATIONS :

Material: Toray UD Carbon fiber
Steerer Material: 7075-T6 Aluminium – 6mm thick
Threadless steer tube: 1-1/8″ top – 1.5″ bottom
Integrated fork race built in for 45° bottom bearing
Steer tube length : 173mm
Dropouts: CNC Machined 6061-T6 Aluminium
Axle : 20mm Thru (112mm length suggested)
Axle to crown: 353.5mm
Offset: 31mm
Weight: 662 g / 23.35 oz (without top cap)
Colors: Matt UD Carbon Finish with Glossy Water Applied Graphics offered in 4 color options : White, Red, Blue or Neon Yellow

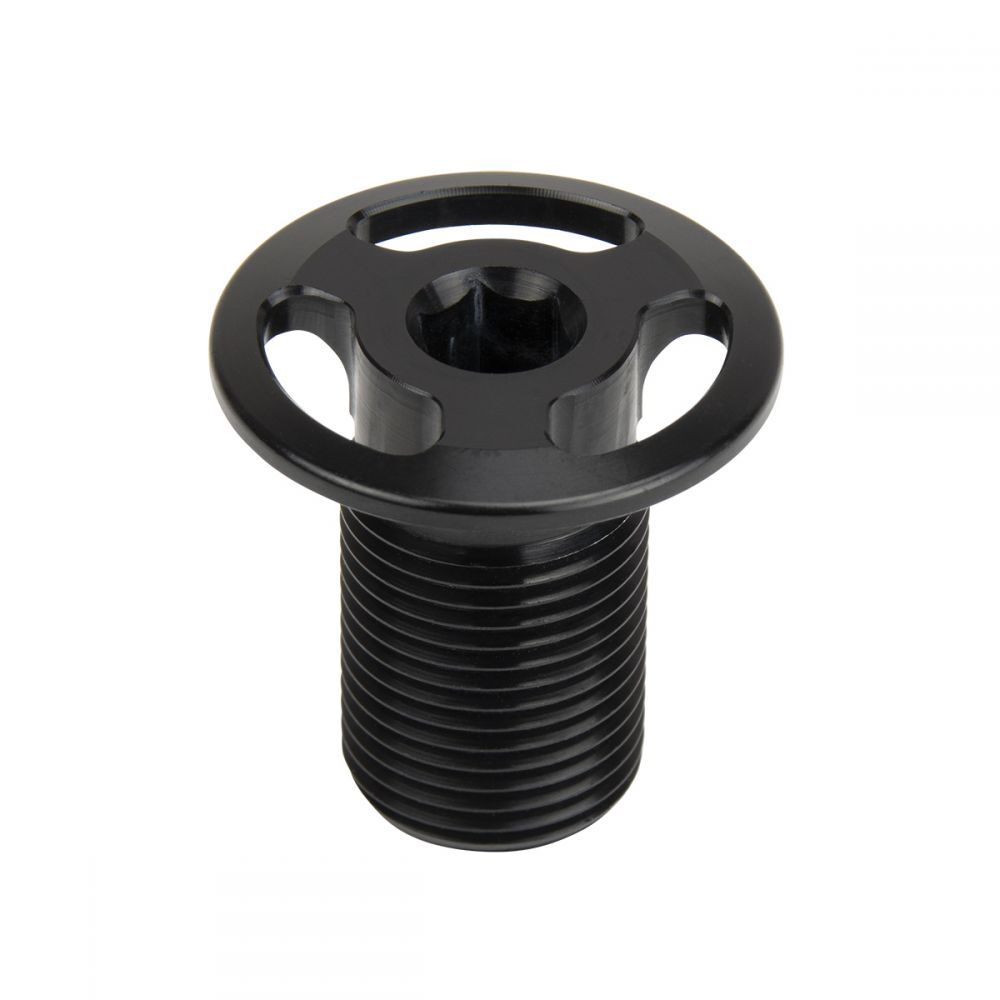

IKON 7075-T6 Alloy M18 Top Cap included
Weight: 15g / 0.52 oz
