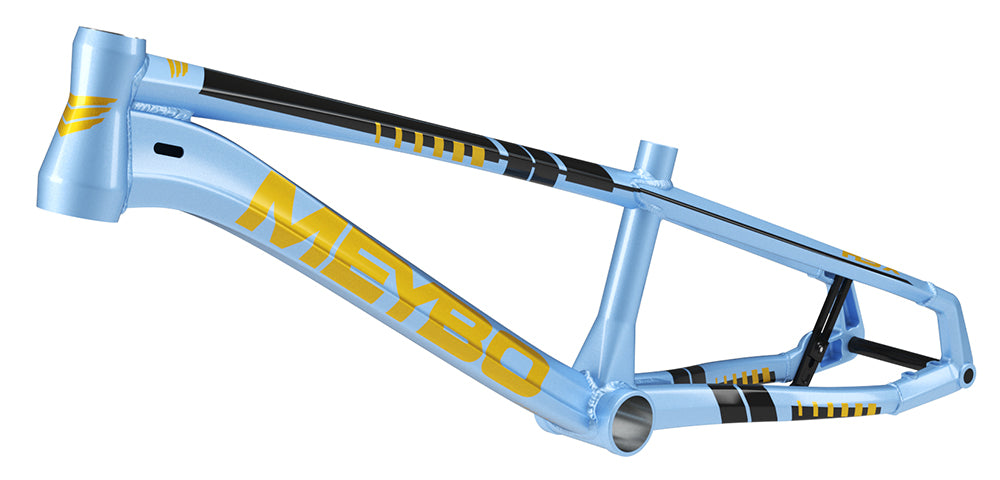

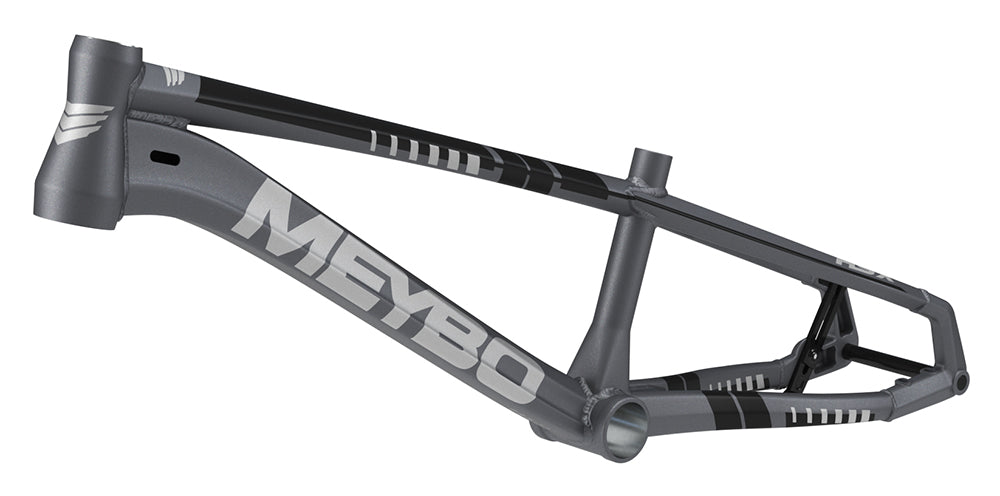

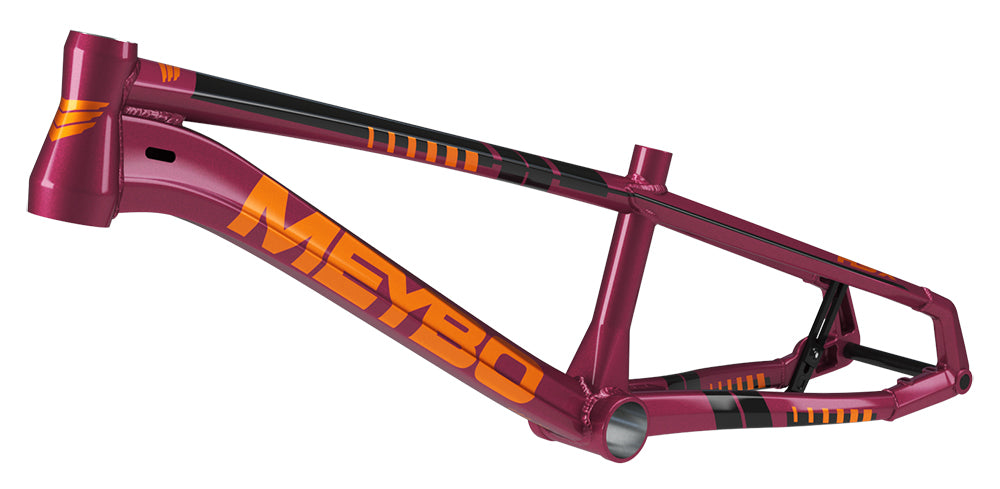

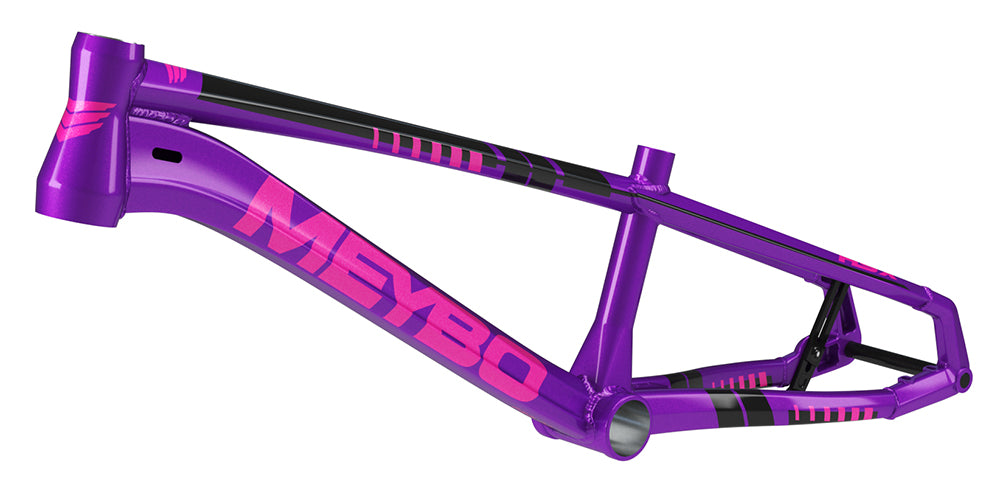

Meybo 2026 HSX Alloy Frames Pro L to XXXXL

The HSX Alloy has the same features, looks and geometry as the carbon HSX and therefore the same great ride characteristics.

Meybo HSX frame features include:
Meybo fixed length chainstay with 15mm rear drop outs
> Ensure you always have the same Chainstay length whatever gear you run
> Easy, fast and straight mounting of your rear wheel
> Disc brake directly mounted on the frame, no adaptor needed
6061 T-6 multiple butted hydroformed tubing
Unique CNC Alloy / PE1000 Meybo chain tensioner system
Supplied with 7005 CNC 15mm rear axle
Disk brake only, no V-Brake mounts
Uses flat mount disk brake and 120mm disk rotor

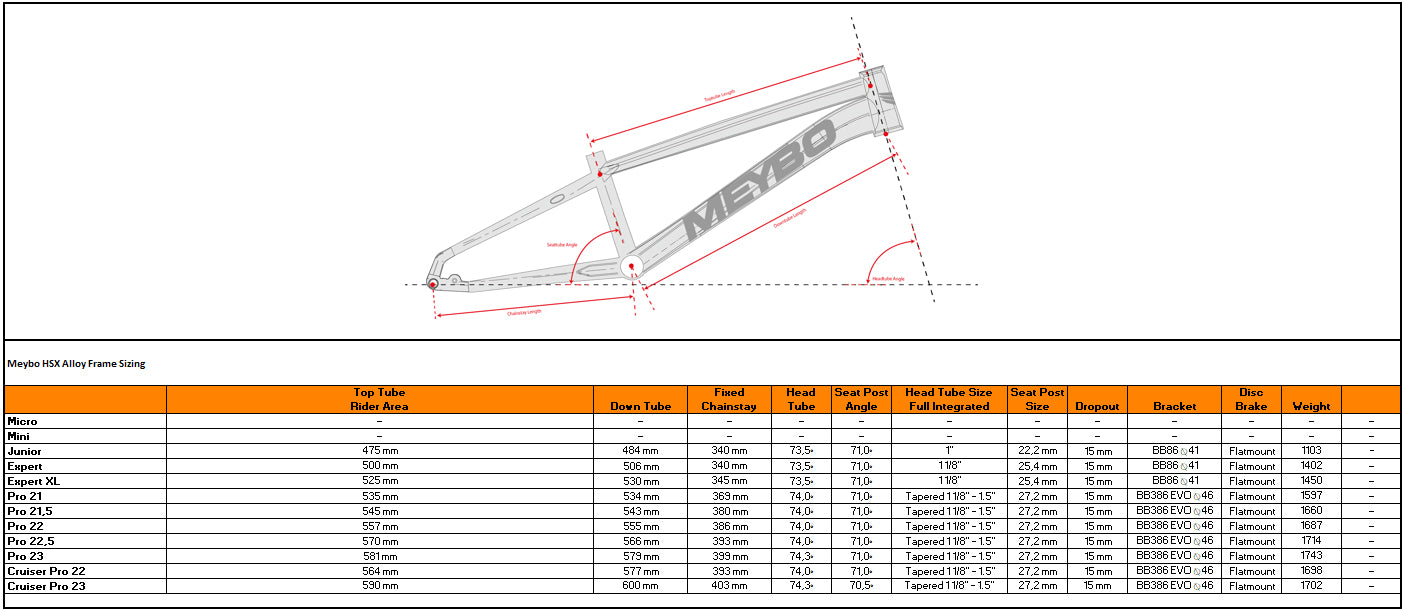

Pro L frame geometry:

Head Tube angle: 74.0°
Top Tube length: 535mm / 21"
Chainstay length: 369mm / 14.5"
Head Tube size: Tapered 1.5" - 1 1/8"
Seat Post size: 27.2mm
15mm rear drop out
BB386
Weight 1597g

Pro XL frame geometry:

Head Tube angle: 74.0
Top Tube length: 545mm / 21.5"
Chainstay length: 380mm / 15.0"
Head Tube size: Tapered 1.5" - 1 1/8"
Seat Post size: 27.2mm
15mm rear drop out
BB386
Weight 1660g

Pro XXL frame geometry:

Head Tube angle: 74.0°
Top Tube length: 557mm / 22"
Chainstay length: 386mm / 15.2"
Head Tube size: Tapered 1.5" - 1 1/8"
Seat Post size: 27.2mm
15mm rear drop out
BB386
Weight 1687g

Pro XXXL frame geometry:

Head Tube angle: 74.0°
Top Tube length: 570mm / 22.5"
Chainstay length: 393mm / 15.5"
Head Tube size: Tapered 1.5" - 1 1/8"
Seat Post size: 27.2mm
15mm rear drop out
BB386
Weight 1714g

Pro XXXXL frame geometry:

Head Tube angle: 74.0°
Top Tube length: 581mm / 23"
Chainstay length: 399mm / 15.7"
Head Tube size: Tapered 1.5" - 1 1/8"
Seat Post size: 27.2mm
15mm rear drop out
BB386
Weight 1743g
