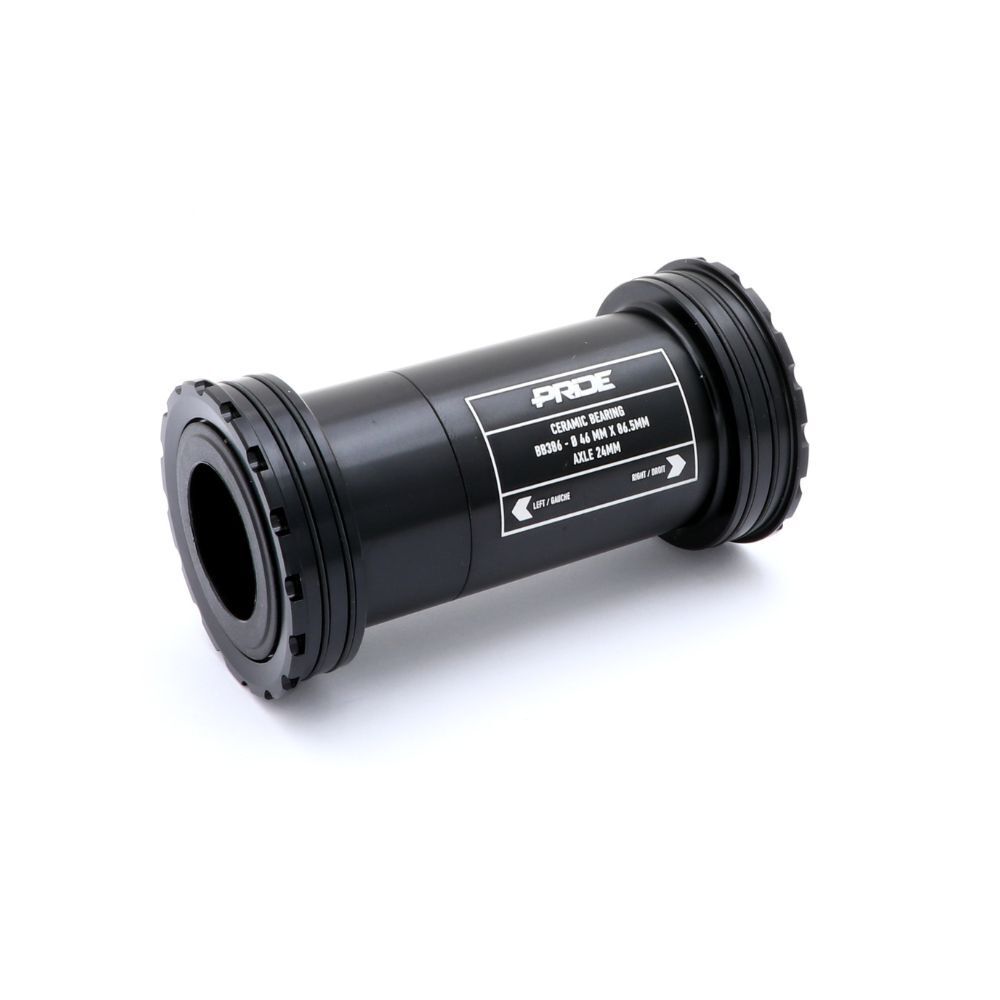

PRIDE BB386 Interlock 24mm Bottom Bracket CERAMIC

Thanks to its 'Interlock' design, the Pride Racing bottom bracket is ideal if you don't have a press to insert bottom brackets into your frame. Simply position the two cups on each side of the frame and screw the two parts together using a specific key for this bracket. All that's left is to tighten the assembly, and you're good to go!

This bottom bracket features two CNC machined cups made of 7075 Aluminum, anodized for a perfect finish. It is designed to install a 24mm crankset on a frame accommodating a Pressfit BB386 bottom bracket with an internal frame diameter of 46mm and a box width of 86mm. This bracket is equipped with sealed ceramic bearings to ensure remarkable smoothness during pedaling phases. All technical information about the bracket is laser engraved on it.

SPECIFICATIONS :

Bracket Type : BB386
Installation : Threaded
Axle Diameter : 24mm
Internal Frame Diameter : 46mm
Width : 86mm
Bearings : Ceramic 6805-2RS
Material : Aluminum 7075
Weight : 128g
