PROFILE ELITE HUB REAR (15mm/20mm)

PROFILE ELITE HUB REAR (15mm/20mm)

Regular price $749.99 AUD
Regular price Sale price $749.99 AUD
Sale Sold out
Shipping calculated at checkout.
Colour
Axle Option
Cog Size

Product Description

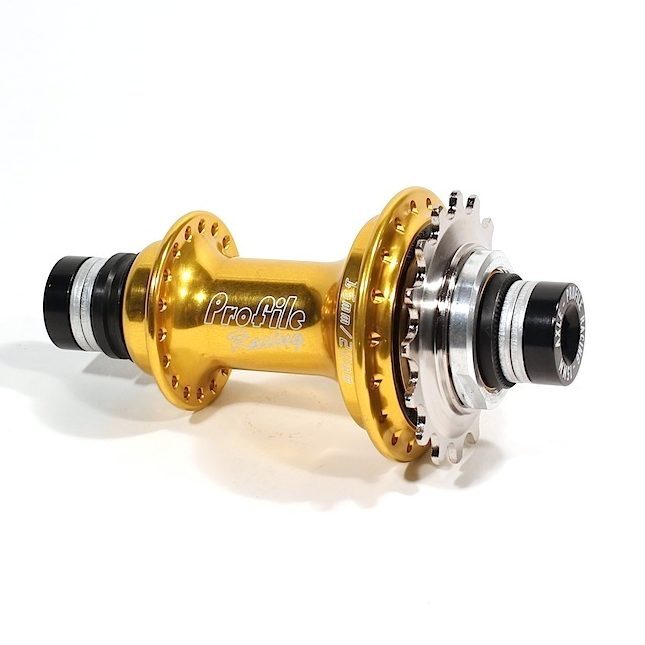

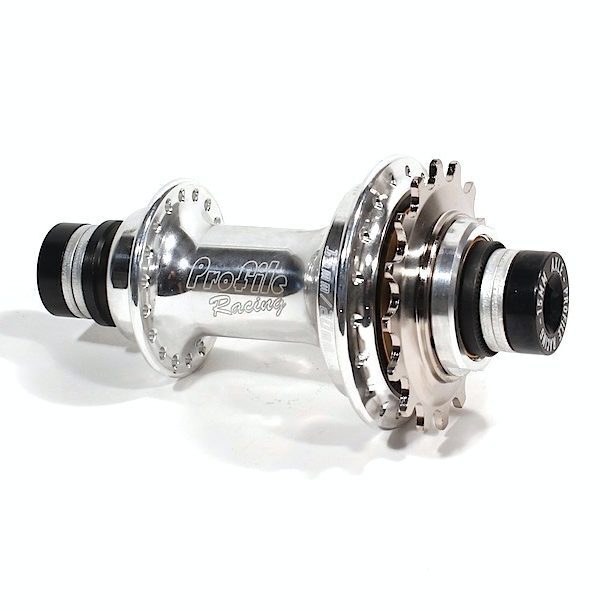

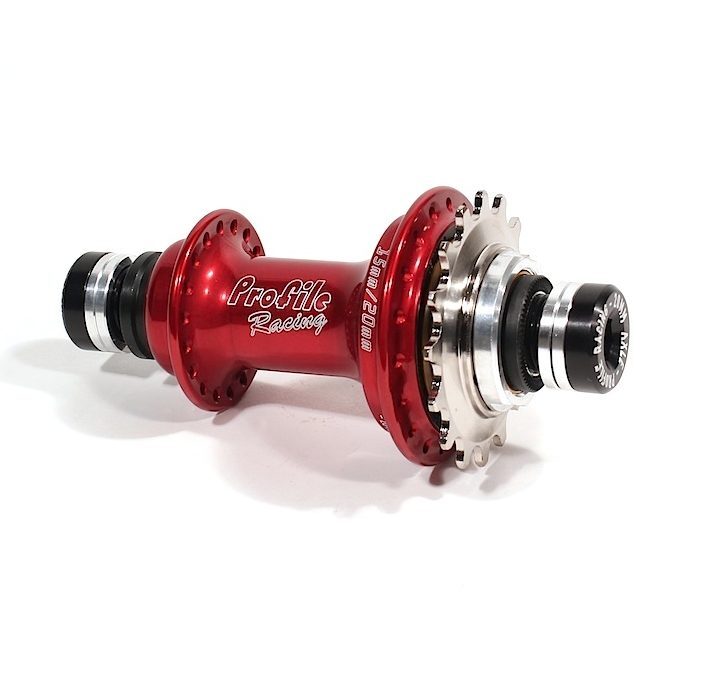

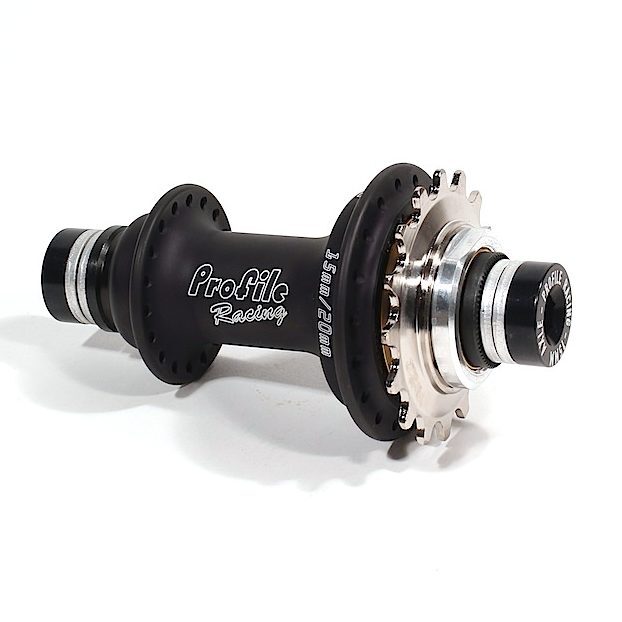

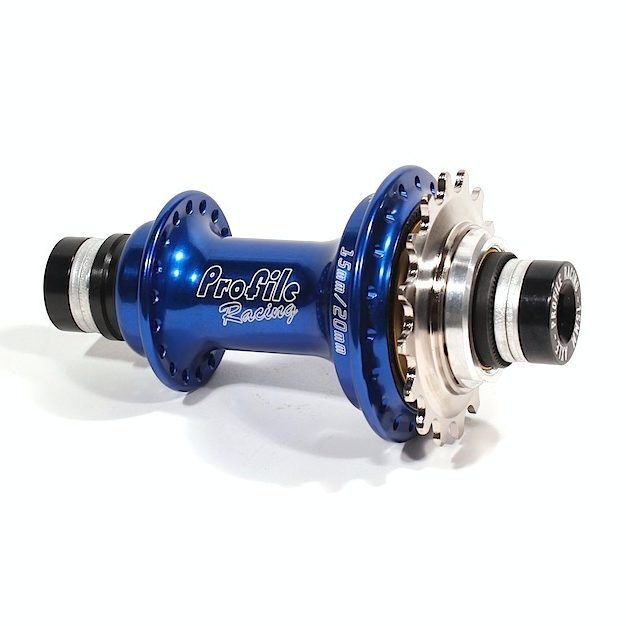

ELITE “15/20” CASSETTE HUB

BUILD YOUR OWN HUB (BYOH)
Choices for following:
-Hub Color
-Axle/Bolts
-Cog

The Elite 15/20 hub was created for the new era in frames and designed to be the best racing hub available with the combined stiffness of the hub shell, oversized axle, & 204 points of engagement, you will have a superior gate start and acceleration out of the turns.

Here are a few key points to the Elite 15/20 hub:

-The Elite 15/20 hub has a true 20mm bolt-on hollow aluminum axle and cassette free-hub body.

-The proprietary aluminum cassette body (different from the existing Elite hub) allows you to use our standard steel, Elite, or aluminum cogs ranging from 12t to 18t.

-Elite 15/20 means that you can use this hub with any frame that requires a 15mm or 20mm axle without using adaptors.

-You have a choice of either 15mm or 20mm bolts when ordering your hub. You can use this hub with any standard aluminum or carbon frame. Replacement 15mm conversion or 20mm bolts are sold separately.

-The Elite 15/20 hub is manufactured from a high grade, aerospace quality billet aluminum.

-Comes with black anodized 15mm or 20mm bolts with laser etched logos

-Front and Rear hubs sold separately.

-Standard BMX 110mm width

-Available in RHD and 36 spoke holes only.

-Made in the USA!

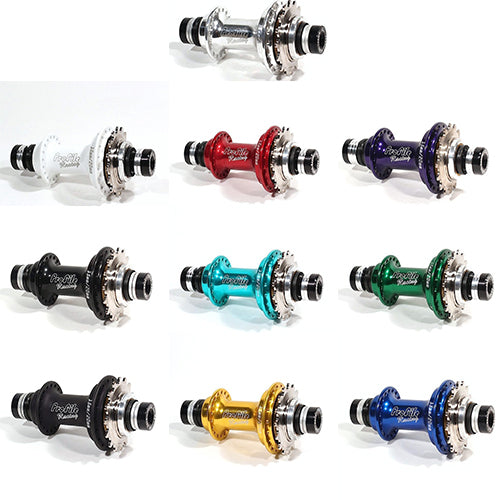

Colors: Black, Polished, Red, Blue, Gold, Purple, Aqua, Green, Matte Black, White

Weight: 418g/14.8 oz (weighed with a 16t steel cog)

***** PLEASE SPECIFY WHAT BOLTS ARE TO BE SUPPLIED WITH HUB*****

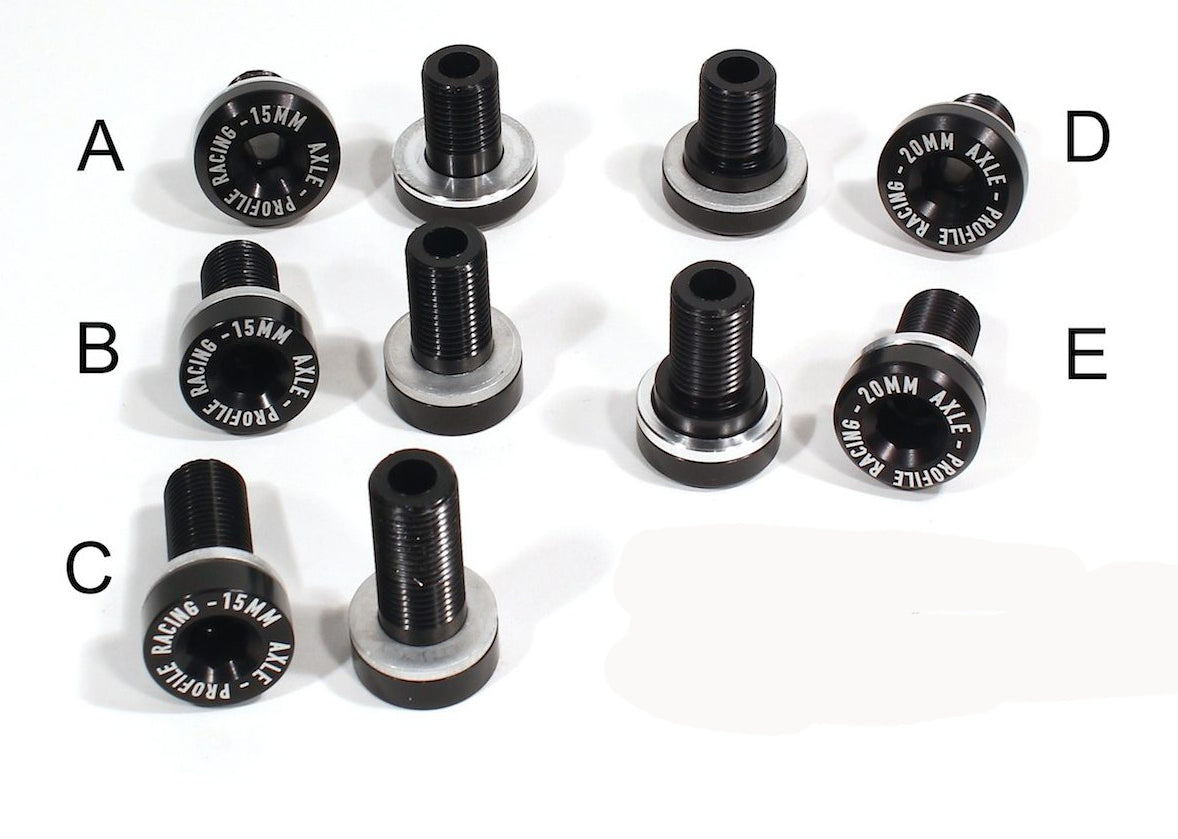

Five different bolt sets to choose from:

A. 15mm Front Hub Bolts

B. 15mm Cassette Hub Bolts (Also used on Nomad Freewheel Hubs)

C. 15mm XL Cassette Hub Bolts(For use on carbon frames with thick dropouts) (Also used on Nomad Freewheel Hubs)

D. 20mm Front Hub Bolts

E. 20mm Cassette Hub Bolt
